Orthopedic Products LCP Superior Anterior Clavicle Titanium Fracture Locking Plate

Customization: Available
Certification: CE, ISO9001
Disinfection: Without Disinfection

Product Description

Basic Information

Model NO.
CanSLP
Color
Transparent
Application
Spine
Material
Titanium
Certificate
ISO13485, ISO9001, CE
Transport Package
Carton
Specification
Customized
HS Code
9021100000
Production Capacity
10000/Month

Product Description

The locking screw concept provides the ability to create a fixed-angle construct while utilizing familiar conventional plating techniques. The fixed-angle construct functions like an internal fixator which maintains primary and secondary loss of reduction. This construct also provides improved fixation in osteopenic bone or multifragment fractures where traditional screw purchase is compromised. LCP constructs do not rely on plate-to-bone compression to maintain stability, therefore protecting the periosteum and preserving the blood supply to the bone.

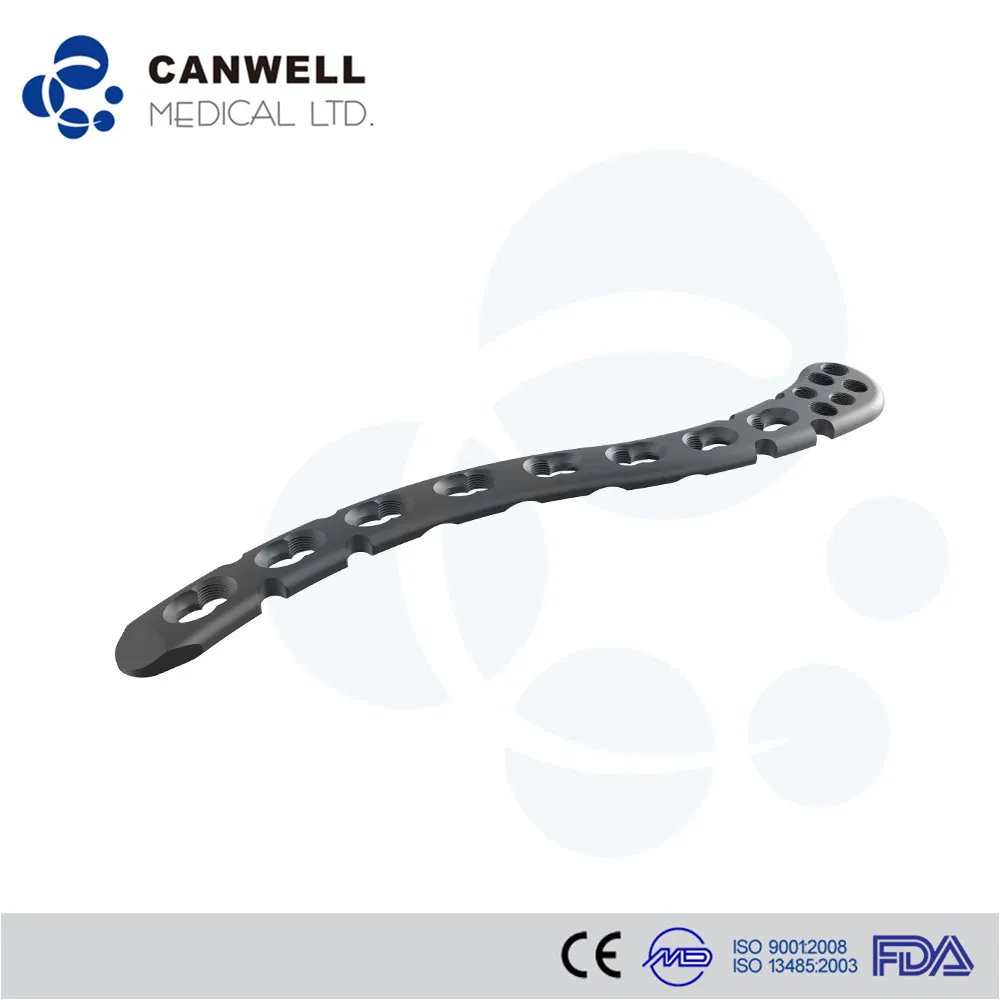

Product Name Orthopedic Products LCP Superior Anterior Clavicle Titanium Fracture Locking Plate
Material Ti-6AL-4V material, with MRI compatible
Standards ISO:13485 / ISO:9001 / CE
Screw Compatibility 2.4/2.7/3.5mm Locking Screw, 3.5mm Cortical Screw, 4.0mm Cancellous Screw
Indications Suitable for many fracture types: Malunions, nonunions, Osteotomies, and general Fractures.

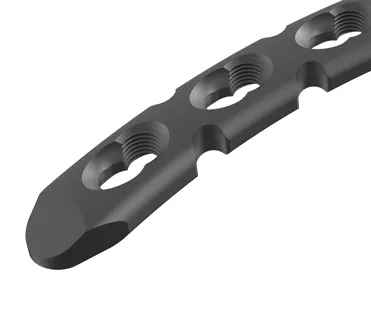

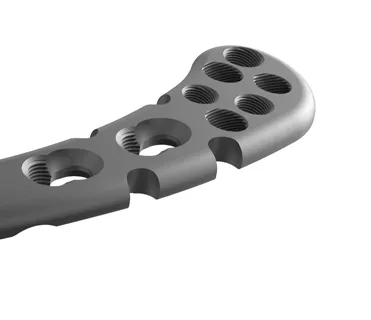

LCP Plate Main View

Features & Benefits

  • Combi-holes: Allows placement of conventional cortex/cancellous bone screws or threaded locking screws.
  • Anatomical Fit: Periarticular Plates are pre-contoured to create an anatomical fit that minimizes soft tissue impingement.
  • Enhanced Strength: Large core diameter improves bending and shear strength of the screw.
  • Self-Tapping: Locking screws feature self-tapping flutes for easier insertion.
  • Fixed-Angle Stability: Special double lead thread beneath the screw head engages and locks into the plate.

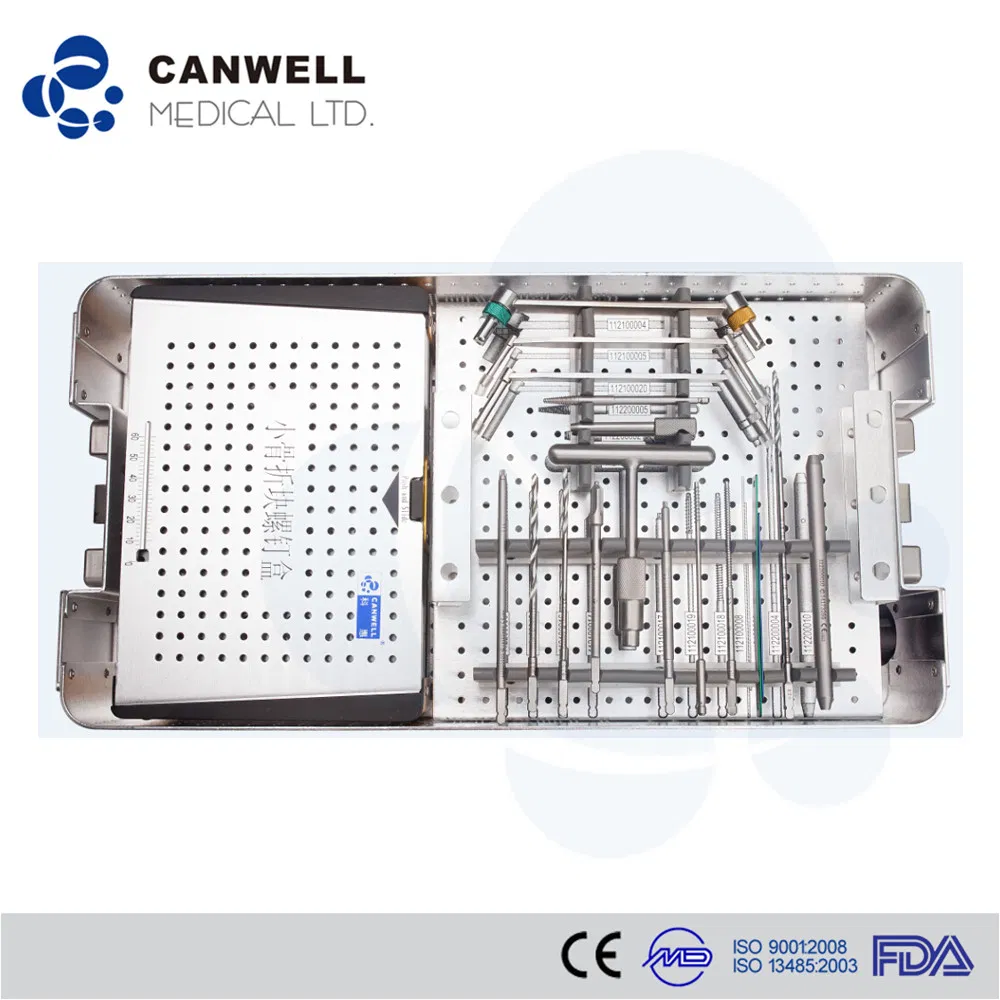

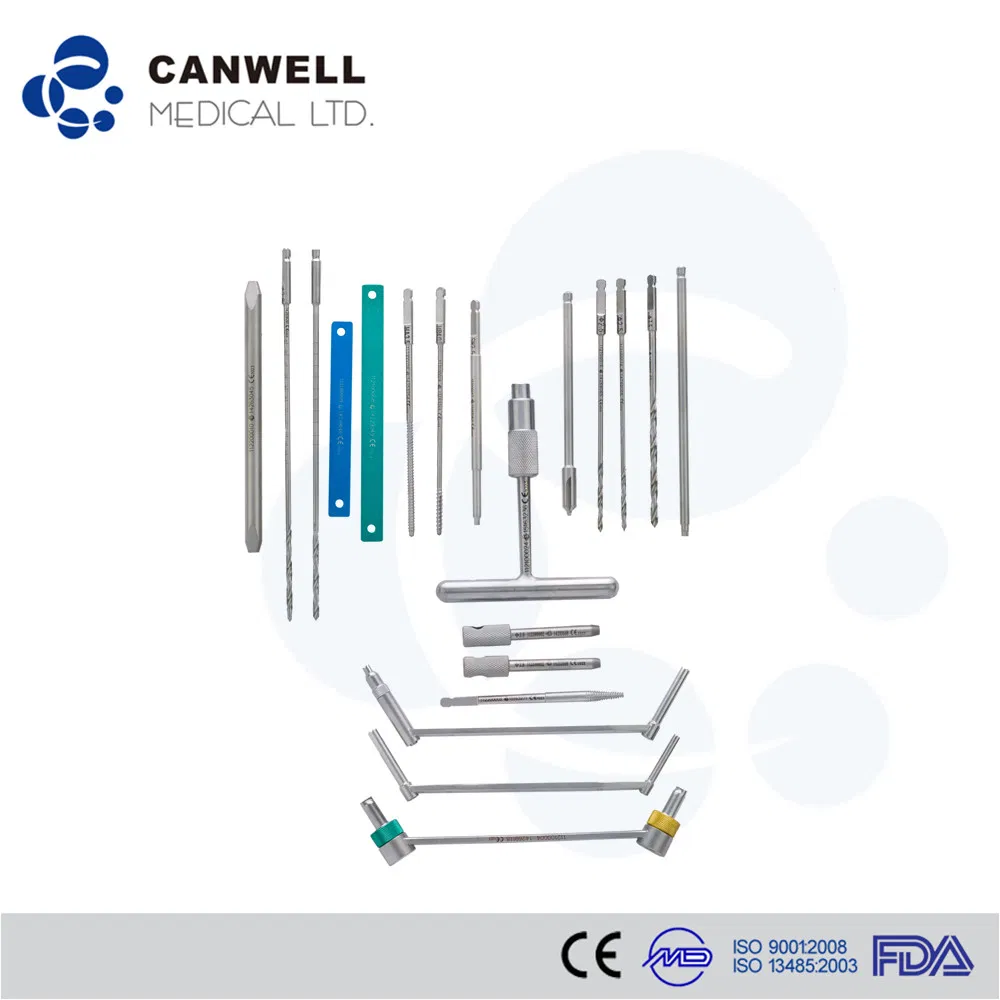

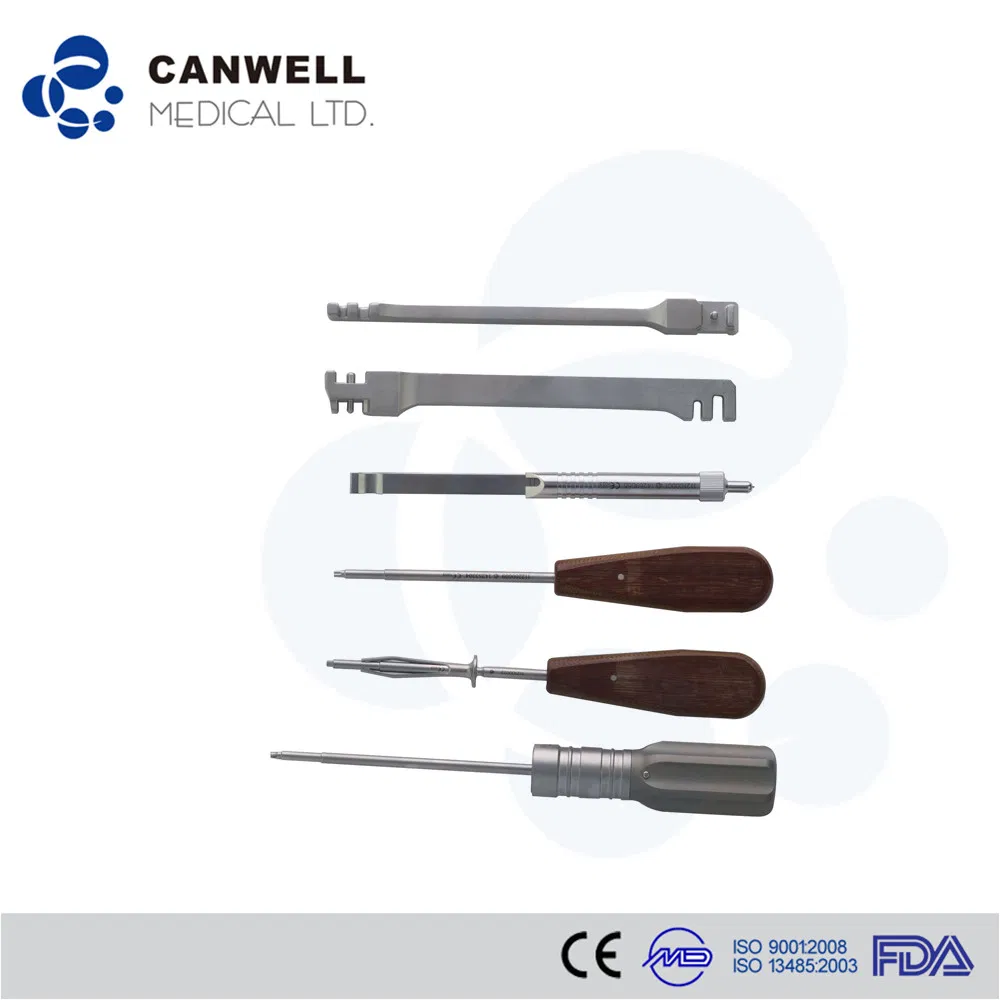

Instruments for CanSLP

NO. P.N F.N Description Qty.
1112300015QS0301Ø2.0 Drill Bit1
2112300001QS1201-00Ø1.8-φ2.4 Drill Sleeve1
3112300002QS1202Ø1.8 Drill Bit2
4112300003QS1203Ø2.0 Drill Bit1
5112300004QS1204-00Straight Handle with Quick Coupling1
6112300005QS1205Stardrive Screwdriver(short)1
7112300006QS1206Stardrive Screwdriver(long)1
8112300007QS1207-00Holding Sleeve1
9112300008QS1208-00Depth Gauge1
10112300009QS1209Ø1.8 LCP Drill Sleeve1
11112300010QS1210-00Universal Drill Guide1
12112300011QS1211-00Quick Coupling Handle1
13112300012QS1212-00Torque Limited Head1
14112300013QS1213Guide Wire4
15112300014QS1214Ø2.0 LCP Drill Sleeve1
16112300080QS2502-00Instruments Tray1

Professional Teams

Production Team

Skilled and dedicated experts ensuring stable quality control and premium product manufacturing.

Research & Design

Experienced in engineering and design, focusing on continuous product development based on market needs.

Sales Management

Professional and global-minded team ready to manage sales and services worldwide.

Training & Support

Renowned consultants organized for orthopedic-oriented teaching and lecturing events.

Frequently Asked Questions

What are the primary benefits of the LCP Locking Plate system?
The LCP system acts as an internal fixator, maintaining reduction without relying on plate-to-bone compression. This protects the periosteum and ensures better blood supply to the bone for faster healing.
Is this orthopedic hardware MRI compatible?
Yes, the plates and screws are manufactured from Ti-6AL-4V Titanium material, which is MRI compatible and provides excellent biocompatibility.
What types of fractures is the Superior Anterior Clavicle Plate suitable for?
It is indicated for various clavicle fracture types, including acute fractures, malunions, nonunions, and osteotomies.
How do the "Combi-holes" function in surgery?
Combi-holes provide versatility by allowing the surgeon to use either conventional cortex/cancellous screws for compression or threaded locking screws for angular stability within the same hole.
Do you offer OEM or customization services?
Yes, we provide OEM services where products can be customized with your specific brand and requirements.
What is the typical lead time for production orders?
Lead times generally range from 15-30 days for in-stock items and 30-60 days for non-stock or high-quantity customized orders.
