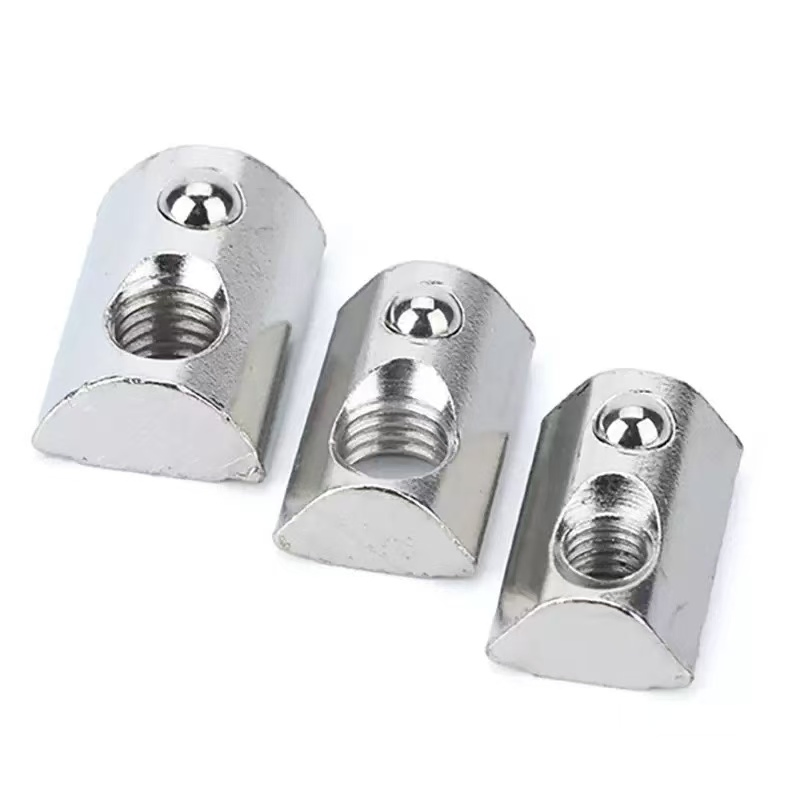

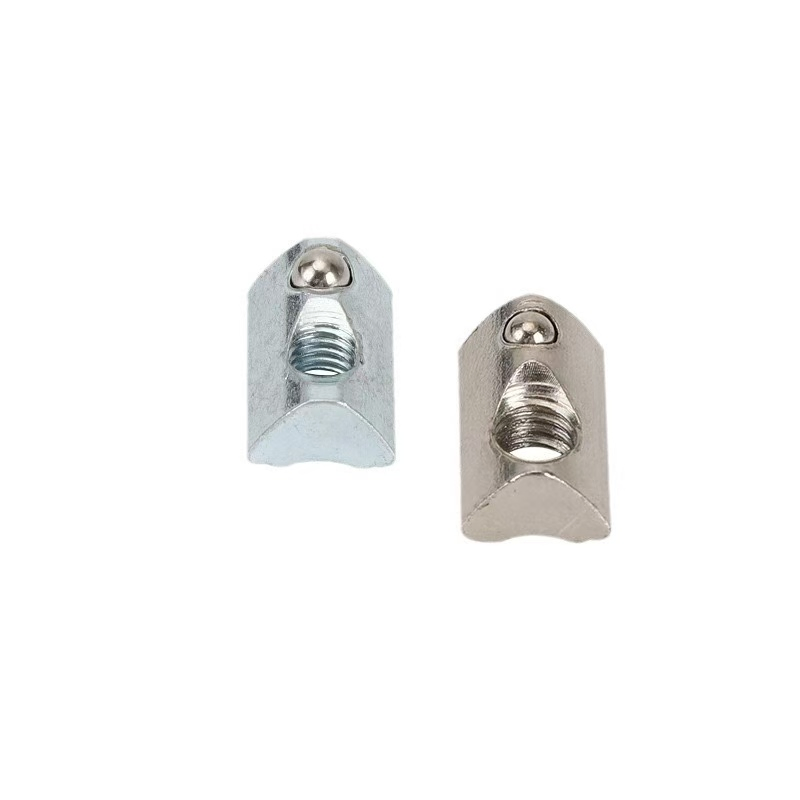

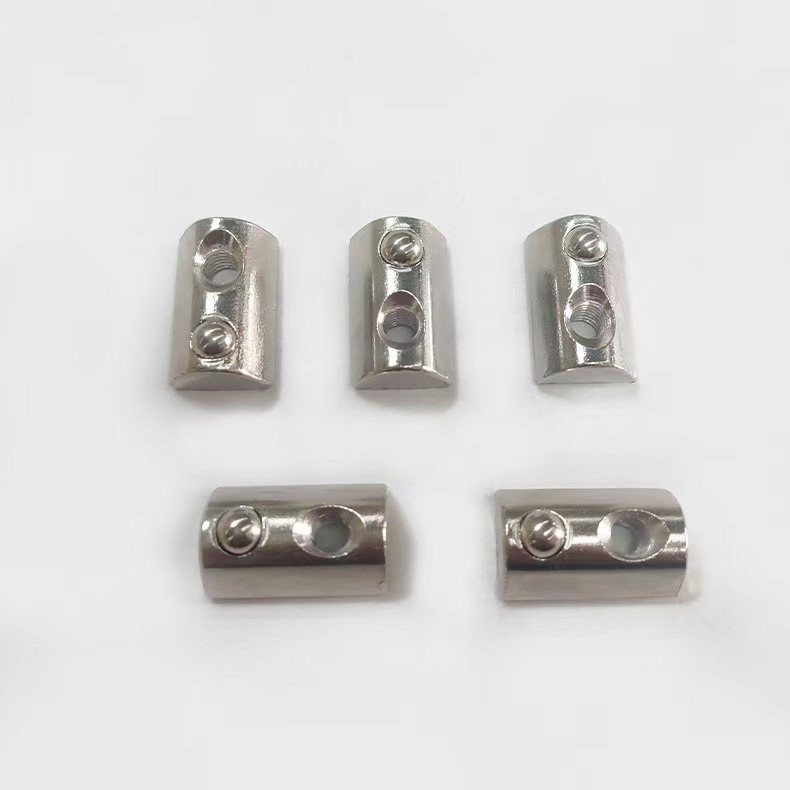

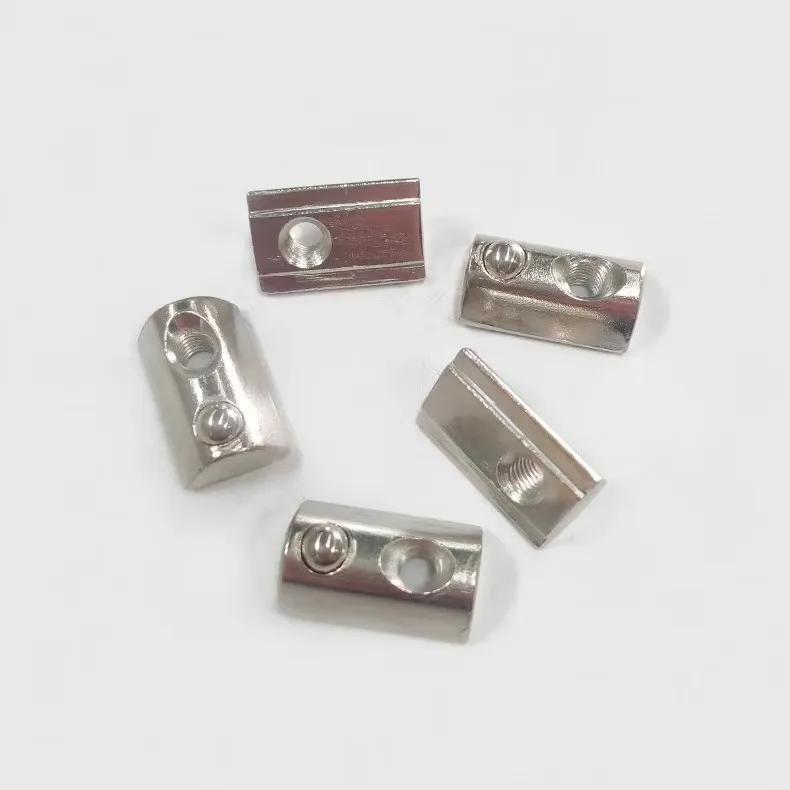

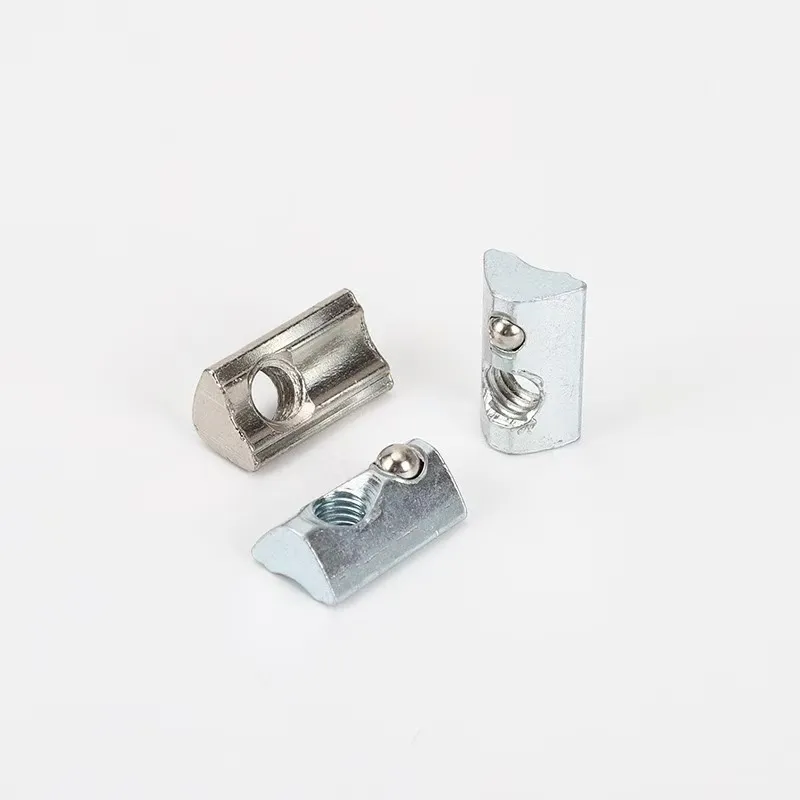

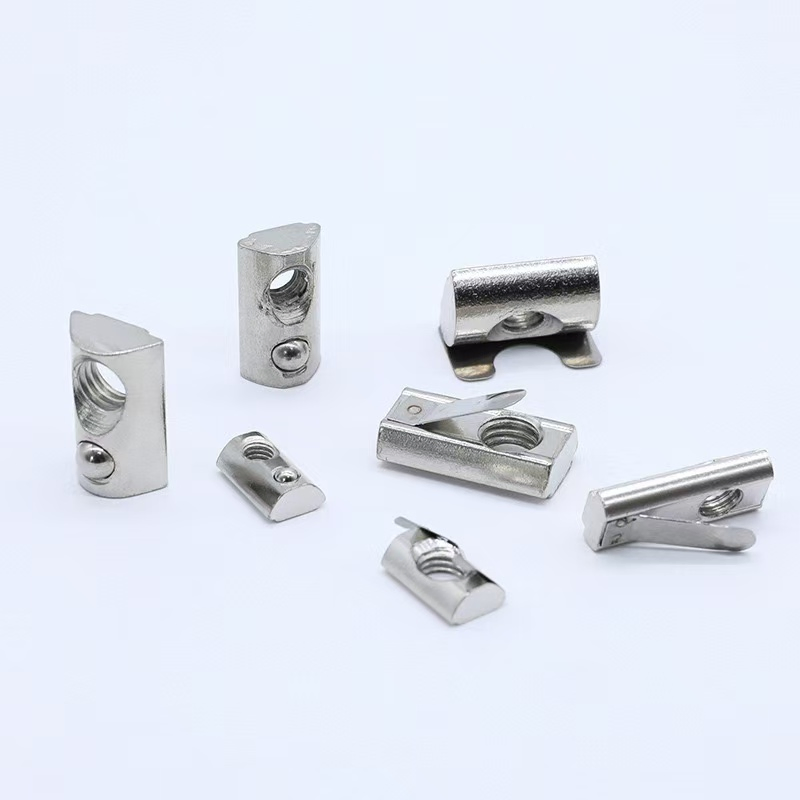

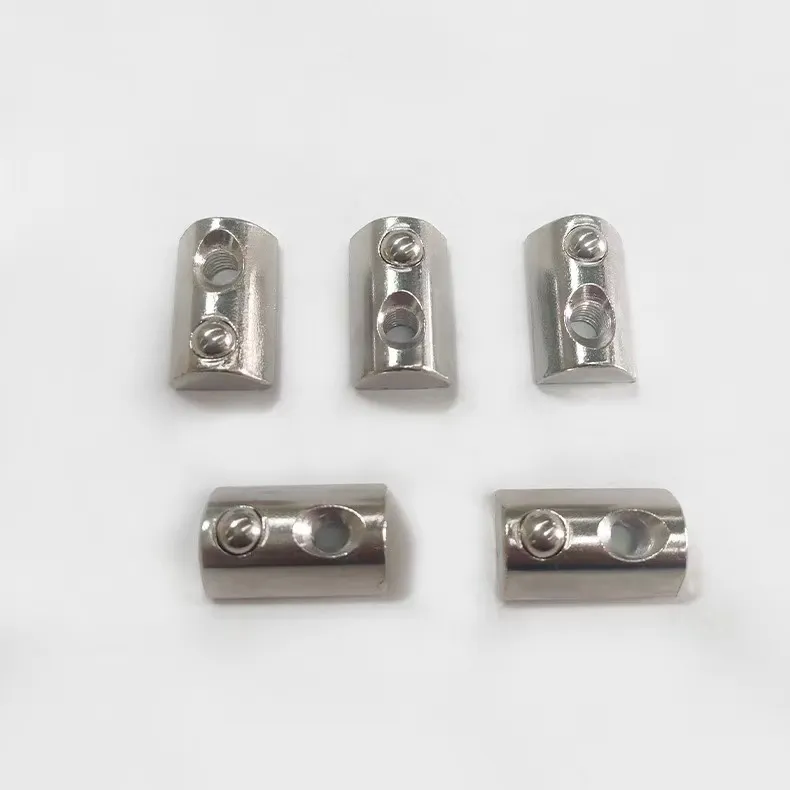

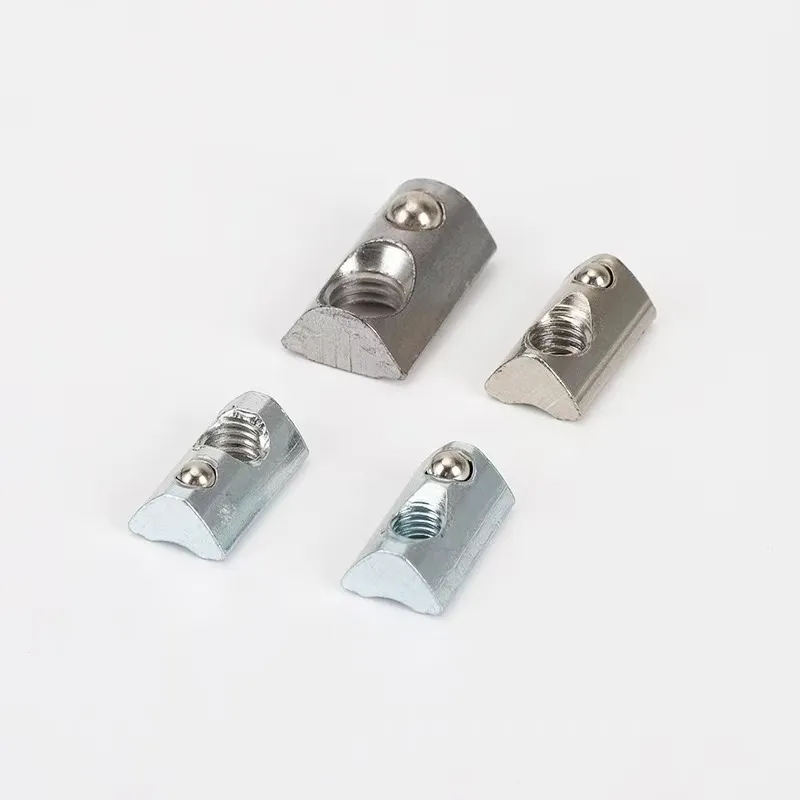

Introducing the revolutionary Pinball Nut, also fondly known as the steel ball nut or elastic nut. This uniquely designed component is engineered with a steel ball structure, making it an indispensable element in countless mechanical connection and assembly applications. Its innovative design is pivotal in ensuring precision and stability across various industries.

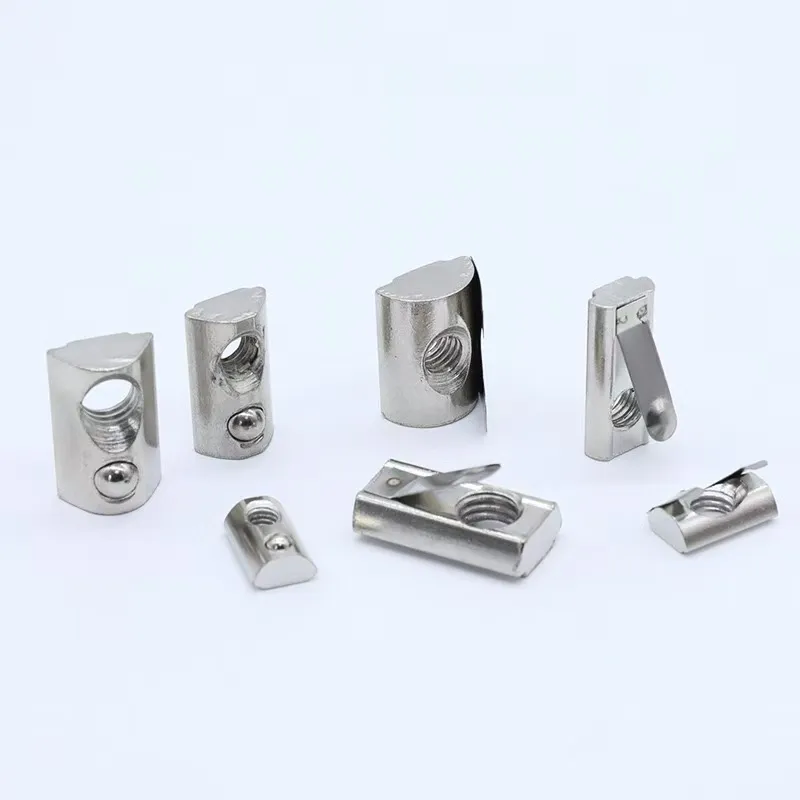

Our Pinball Nut is meticulously crafted, comprising the robust nut body, resilient steel ball, and a reset spring for unparalleled elasticity. The nut body is intentionally designed in a block shape, featuring a central threaded hole which seamlessly allows a bolt to pass through. Ingenious holes are situated at either the bottom or the side of the nut body, perfectly accommodating the steel ball. Ingeniously, a reset spring is housed within these holes to offer elastic support for the steel ball.
The Pinball Nut excels in fastening and precise positioning, harnessing the power of friction between the steel ball and the contact surface, coupled with the steel ball's elastic positioning prowess. When introduced to a groove, like that of an aluminum profile, the reset spring ensures the steel ball is firmly pressed against the groove's inner wall. This results in substantial friction, effectively preventing unwanted sliding and delivering a stable positioning effect.

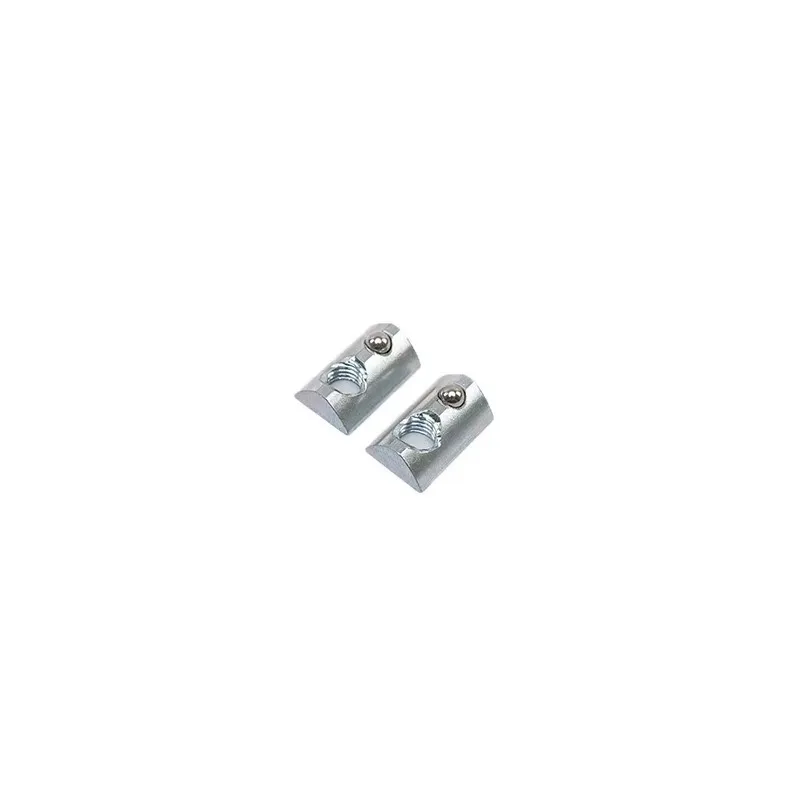

Our Pinball Nut's nut body is available in prestigious materials such as stainless steel, carbon steel, and other premium metals. Stainless steel variants promise outstanding rust and corrosion resistance, while carbon steel offers a cost-effective solution with remarkable strength. The steel balls are crafted from high-hardness metals like bearing steel, guaranteeing exceptional wear resistance and compressive strength.
The Pinball Nut promises an incredibly simple installation process, often achievable by hand-pressing into an aluminum groove without requiring intricate tools. It delivers exceptional positioning capabilities, remaining steadfast post-installation, and preserves stability across diverse orientations. Additionally, it boasts seismic resilience, maintaining connection reliability under vibrational conditions.
Extensively used in constructing industrial aluminum profile frames, connecting aluminum profiles for mechanical protective fences, automation equipment racks, and assembly line workbenches. It also plays a crucial role in electronic device manufacturing and quick assembly display stands or experimental devices.
