Please contact us for full catalog to customize set.
More designs are available!
| Product | Specification | Blade Screw | Specification |
|---|---|---|---|

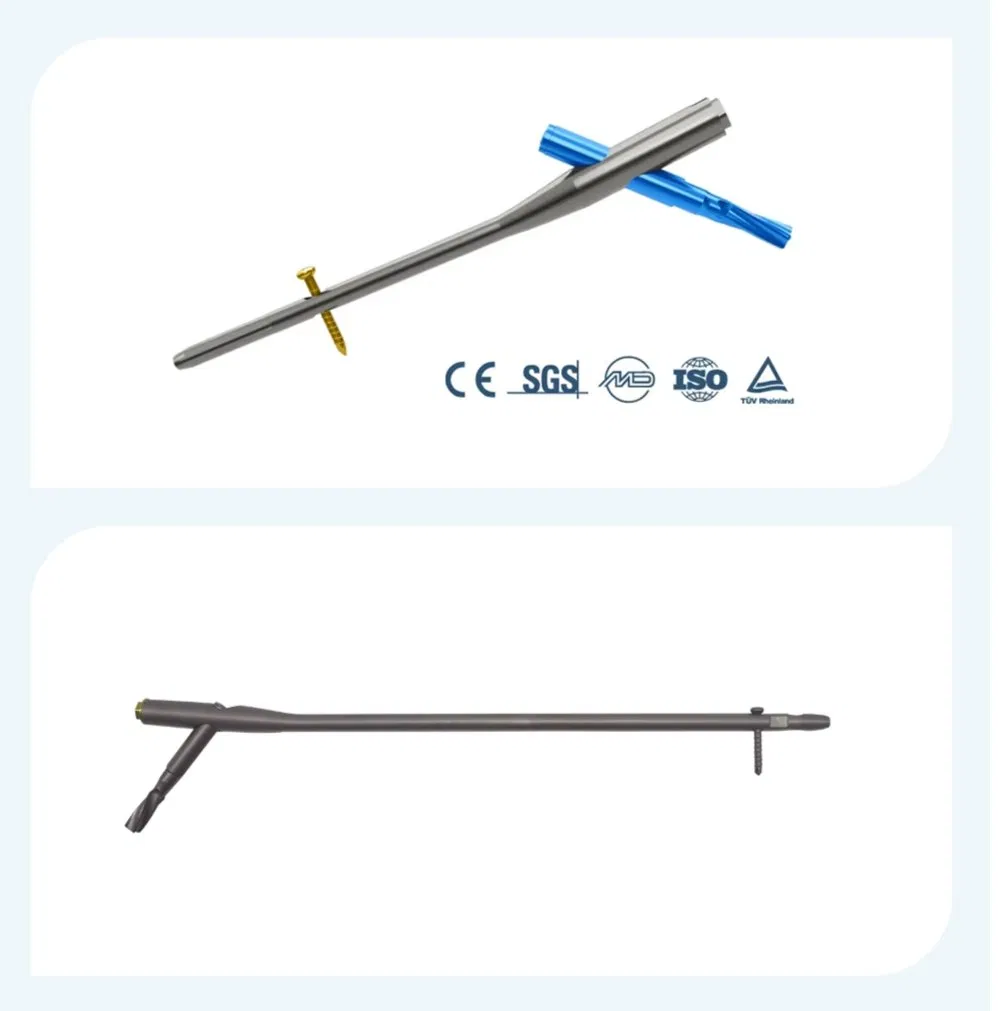

| PFNA Intramedullary Nail | Φ9×180 / 200 / 220 / 240 | Blad Screw | Φ10.4*70 |
| Φ10×180 / 200 / 220 / 240 | Φ10.4*80 | ||
| Φ11×320 - 440 (R/L) | Φ10.4*100 | ||
| Φ9×320 - 440 (R/L) | Φ10.4*120 |
If you want other sizes please contact us.

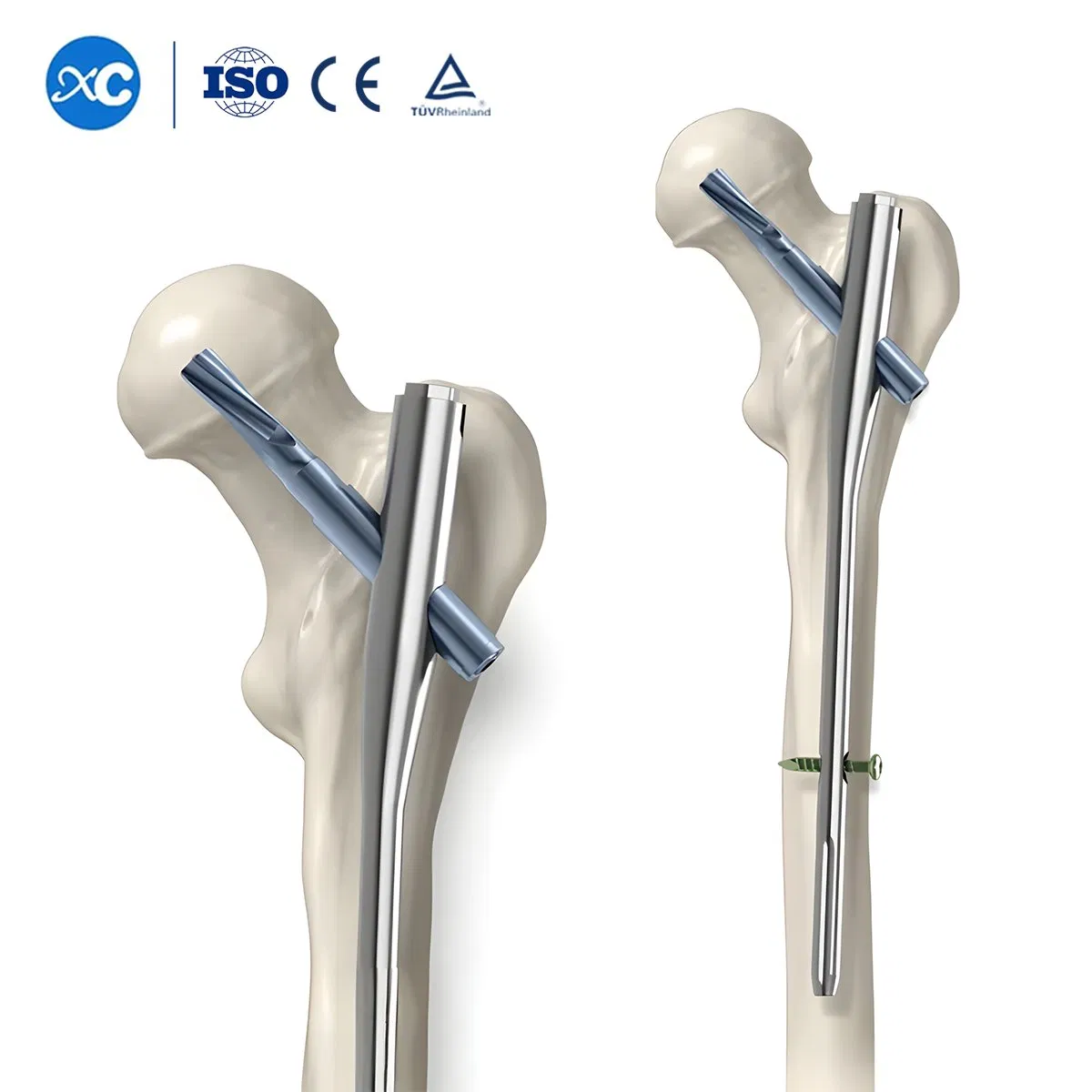

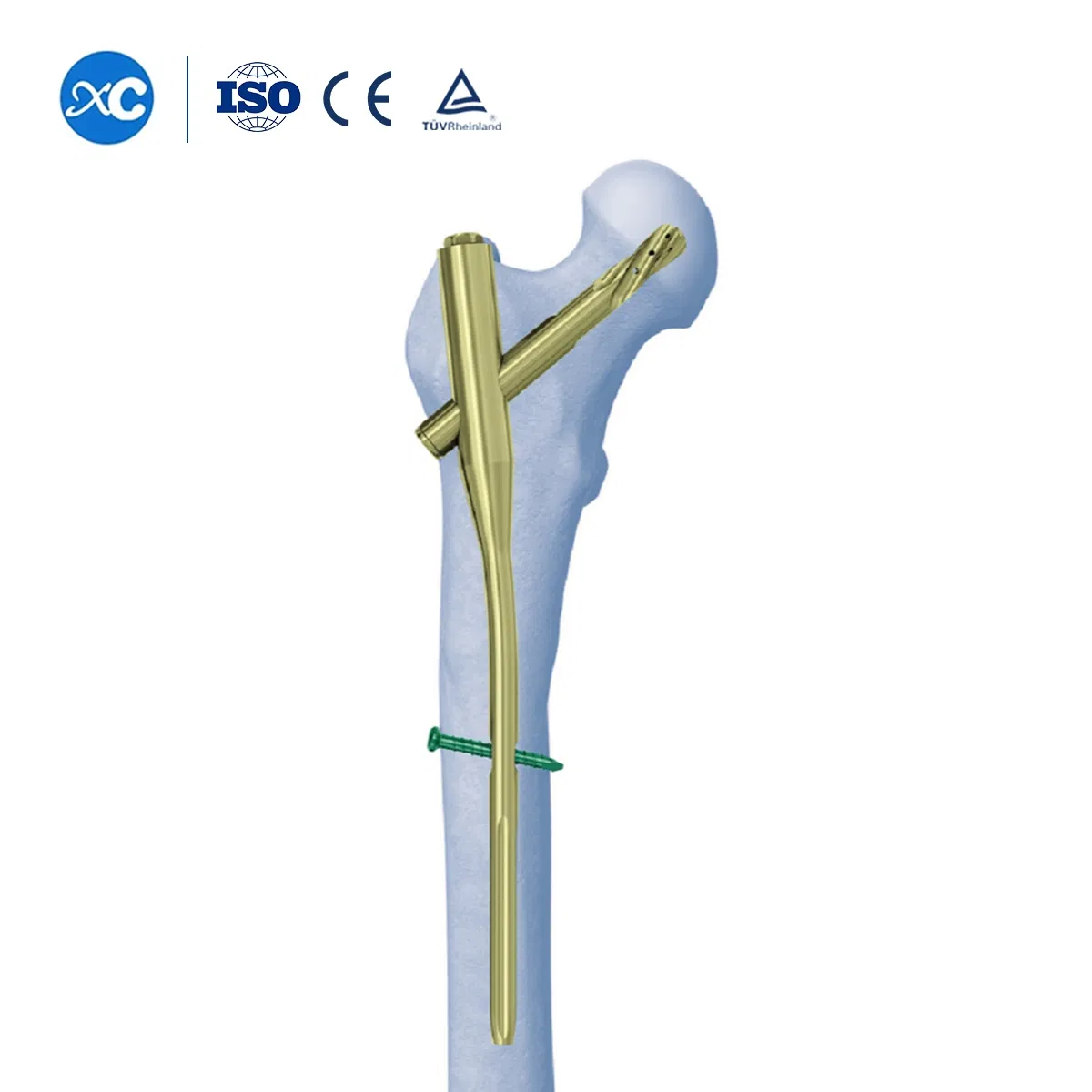

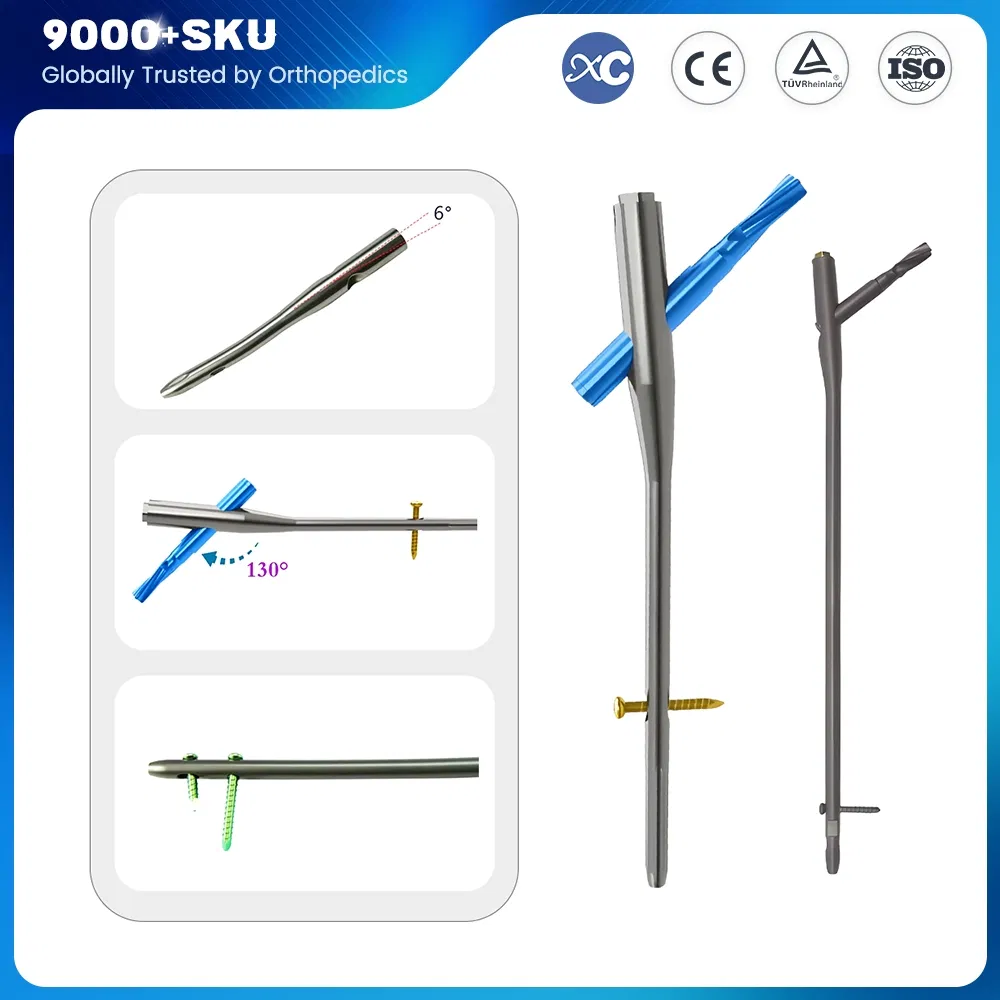

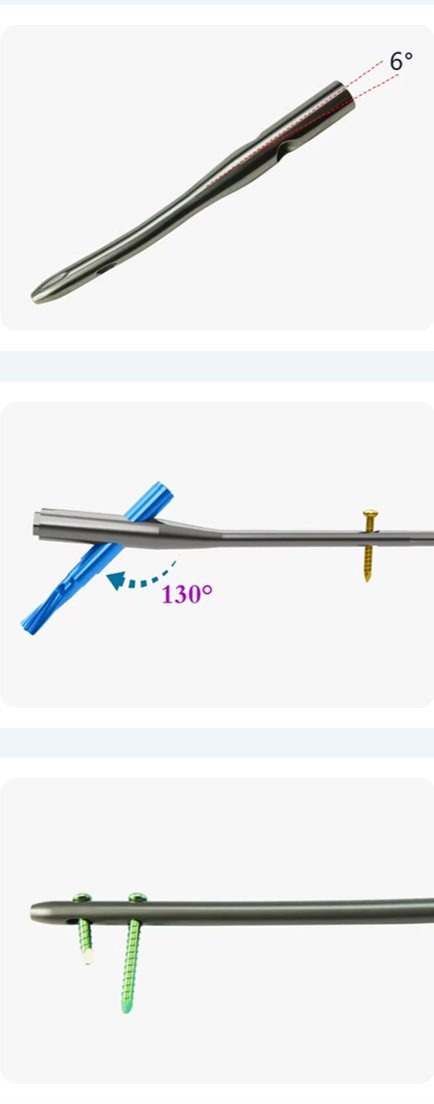

The PFNA nail has a Medial-lateral Angle of 6°, which allows insertion at the tip of the greater trochanter.

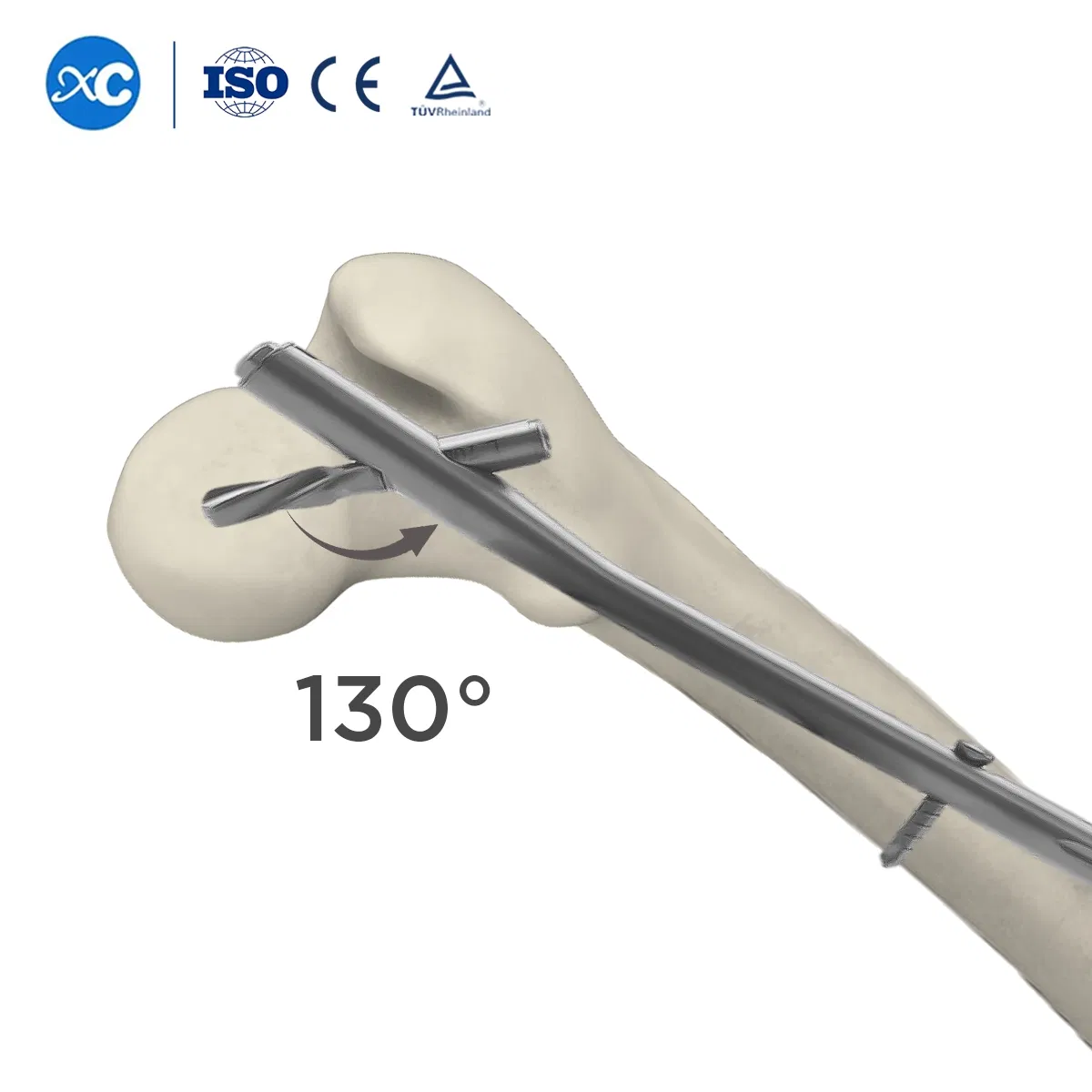

The PFNA blade screw offers higher cut-out resistance than standard screws. Its 130° angle with the nail provides better ergonomics.
Static or dynamic locking is done via the aiming arm for all PFNA types. The long nail also supports secondary dynamization.

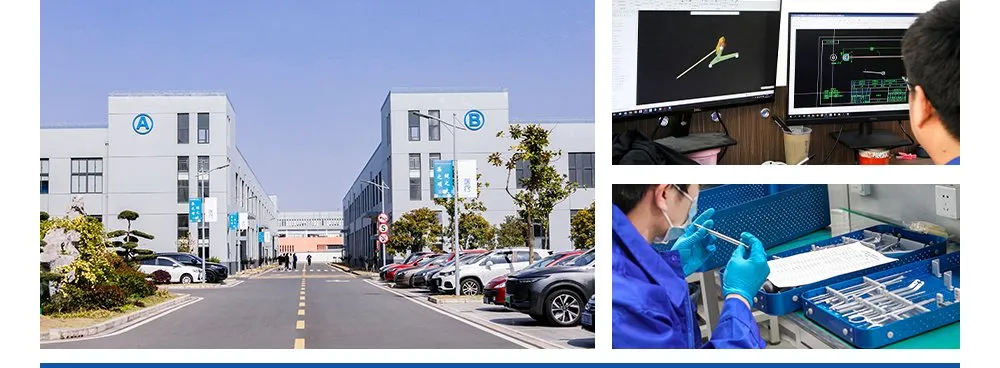

We provide a full range of orthopedic implants and instruments. As a professional manufacturer, we have our own production lines and warehouses to ensure quality and supply.

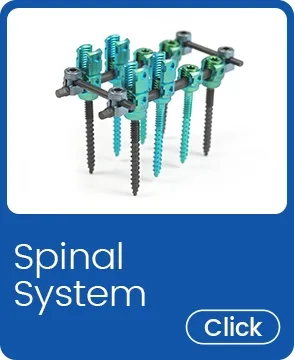

After 15 years of research and development, we have established 6 main series of orthopedic products, including spinal systems, interlocking nails, locking plates, basic instruments, and medical power tools. We also specialize in veterinary orthopedic solutions.
