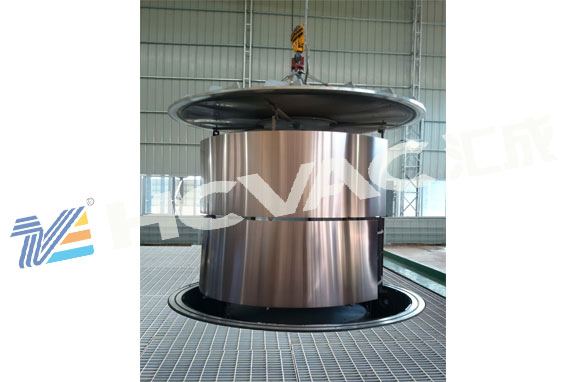

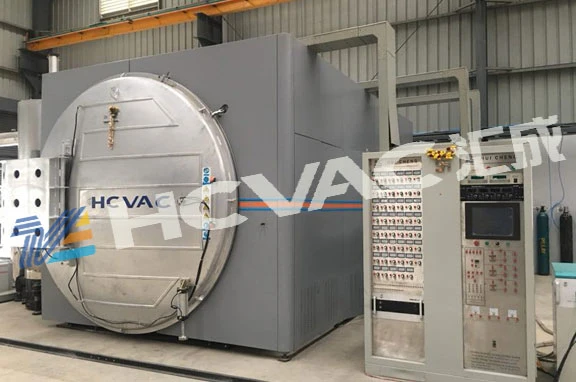

Stainless Steel Sheet Door Handles PVD Vacuum Ion Plating Coating Machine System
Stainless Steel Sheet Door Handles PVD Vacuum Ion Plating Coating Machine System
Stainless Steel Sheet Door Handles PVD Vacuum Ion Plating Coating Machine System
Stainless Steel Sheet Door Handles PVD Vacuum Ion Plating Coating Machine System
Stainless Steel Sheet Door Handles PVD Vacuum Ion Plating Coating Machine System
1 / 5
Stainless Steel Sheet Door Handles PVD Vacuum Ion Plating Coating Machine System
Stainless Steel Sheet Door Handles PVD Vacuum Ion Plating Coating Machine System
Stainless Steel Sheet Door Handles PVD Vacuum Ion Plating Coating Machine System
Stainless Steel Sheet Door Handles PVD Vacuum Ion Plating Coating Machine System
Stainless Steel Sheet Door Handles PVD Vacuum Ion Plating Coating Machine System

Stainless Steel Sheet Door Handles PVD Vacuum Ion Plating Coating Machine System

Customization: Available
After-sales Service: Free Installing and Training, Technical Support
Warranty: One Year Limited Warranty
Send Inquiry

Product Description

Technical Specifications

Model
HCCA Series
Type
PVD Vacuum Coating Machine
Technology
Ion Plating / Vacuum Coating
Substrate
Steel / Stainless Steel
Certification
CE, ISO
Control Mode
10.4 Inch PLC Touch Screen
HS Code
8543300090
Origin
Guangdong, China

Product Overview

This advanced system is designed to apply decorative coatings via ion plating techniques, providing a real metal texture superior to chemical coatings. It is suitable for a wide range of products including stainless steel sheets, pipes, furniture, and accessories.

Available Color Series:

  • ● Gold Series: TiN, ZrN, TiN+Au, ZrN+Au
  • ● Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu
  • ● Silver & Grey: CrN, CrSiN, Ti, Stainless Steel (S.S)
  • ● Black Series: TiC, TiC+iC, TiCN, TiAlN, DLC
  • ● Special Colors: Blue (TiO), Coffee (ZrC), Rainbow, Purple

Technical Parameters

Model HCCA-1818 HCCA-2236 HCCA-2270
Dimension D1800*H1800mm D2200*H3600mm D2200*L7000mm
Coating Mode Arc + Sputtering Arc Targets Arc Targets
Power Source Electric-arc, Filament, Pulsed Bias Power Supply
Vacuum System Diffusion pump + Roots pump + Mechanical pump (5.0*10⁻⁴Pa)
Baking Temp Up to 350°C with PID control

Machine & Application Display

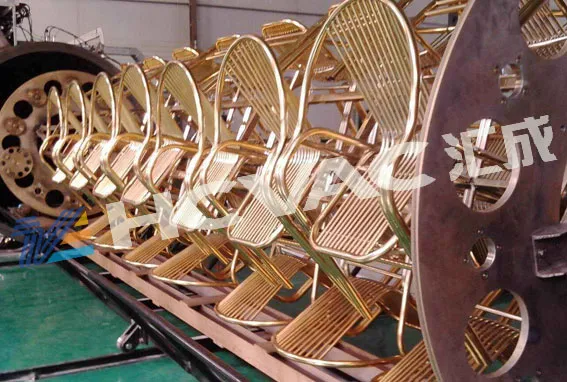

PVD Coating Machine
Vacuum Plating System

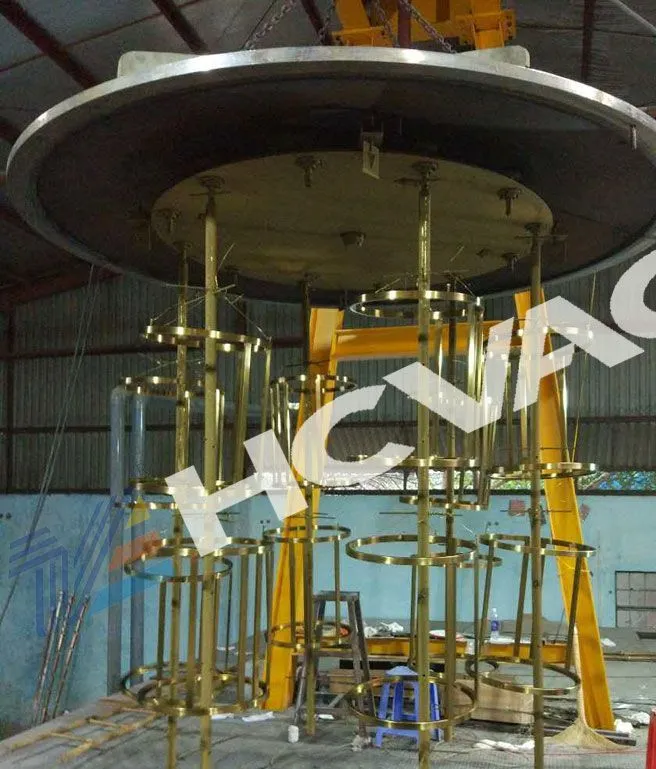

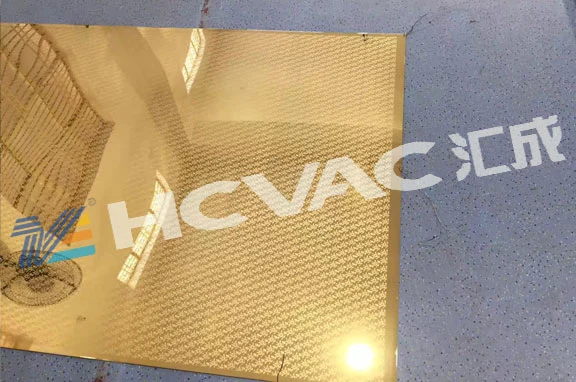

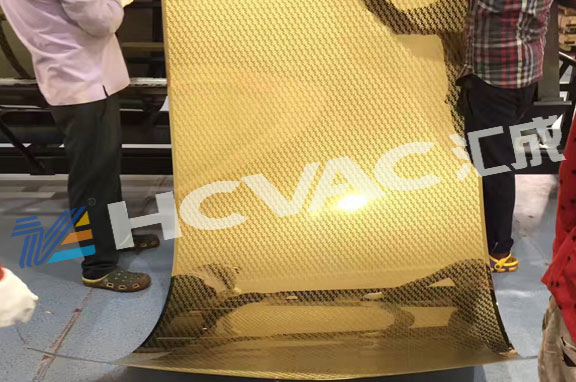

Stainless Steel Samples

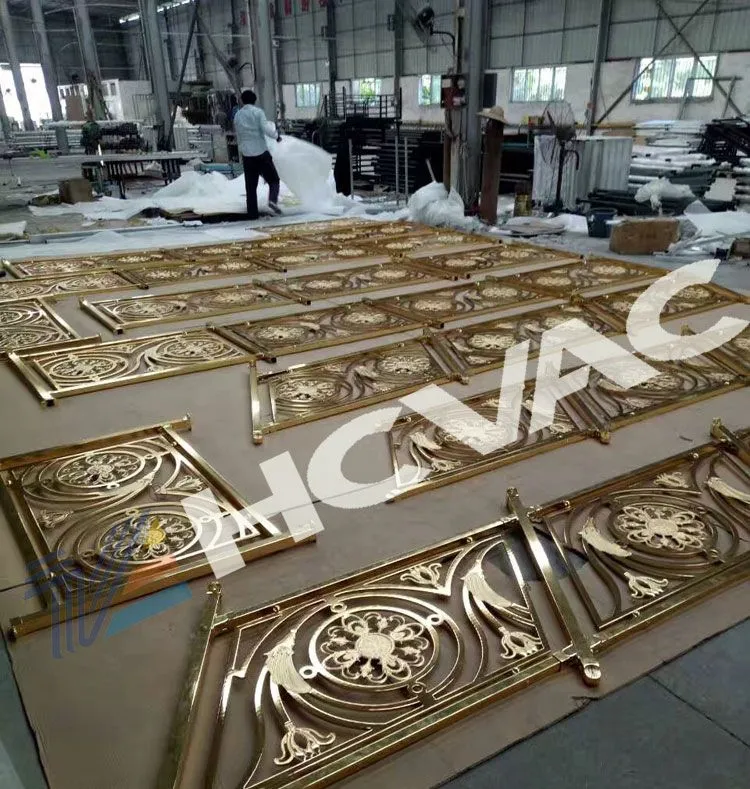

Decorative PVD Products

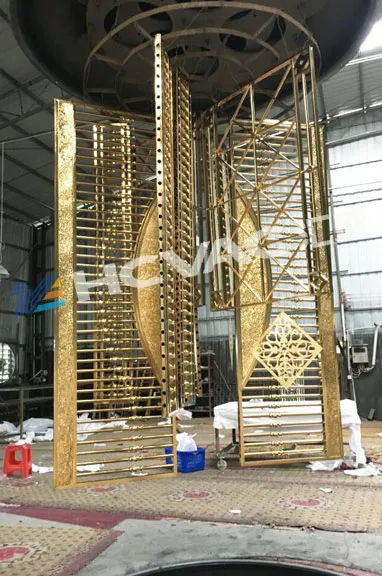

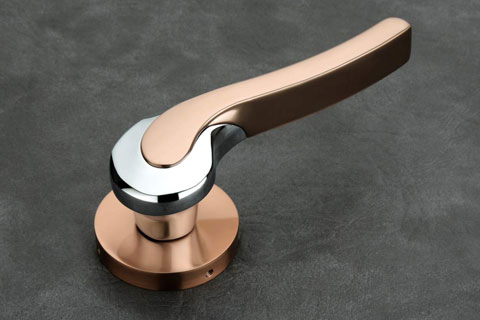

Coated Hardware

Why Choose Our System?

  • ✓ Global Proven Performance: Over 3000 plants installed worldwide.
  • ✓ High Efficiency: Quick cycle times with low energy consumption.
  • ✓ Superior Build: Steel process chambers designed for a 25-year guaranteed working life.
  • ✓ Eco-Friendly: Clean technology with no hazardous chemical waste.
  • ✓ Automation: Full PLC + Touch screen control for easy one-man operation.

Manufacturing & Delivery

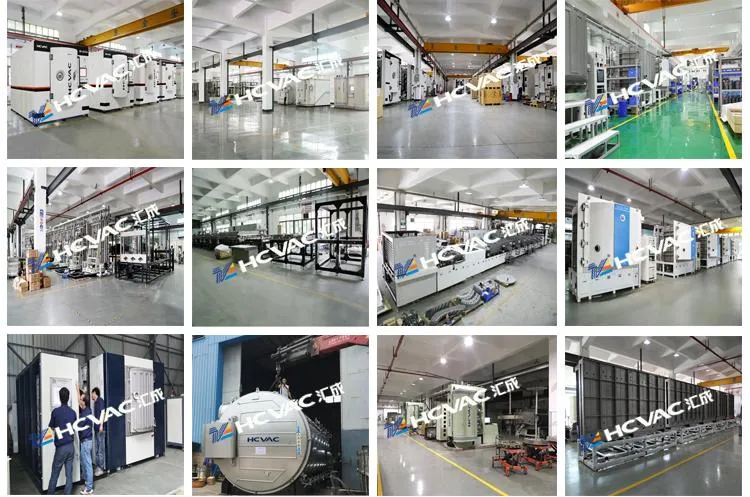

Factory Workshop

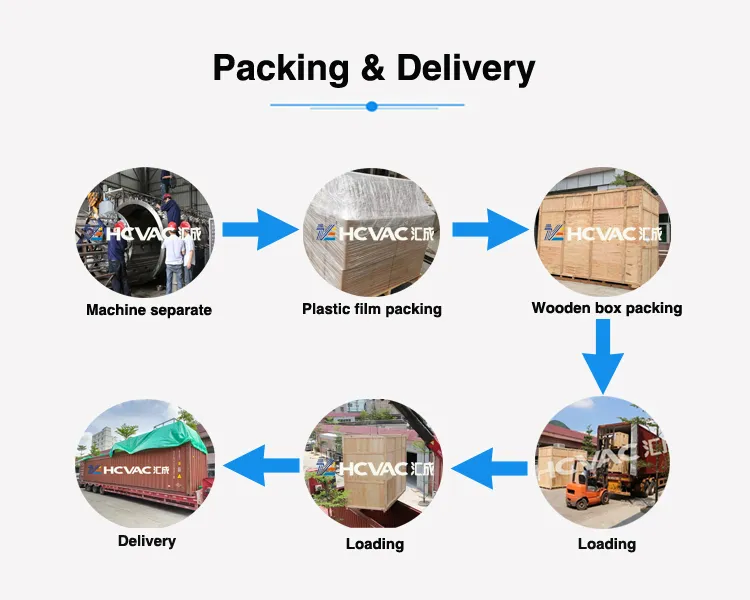

Delivery Process
Certificates

Frequently Asked Questions

Q: What materials can the PVD machine coat?
A: It is primarily designed for stainless steel sheets, pipes, and accessories, but is also widely used for other metals, furniture, lighting, and automotive parts.
Q: What is the maximum size of products the machine can handle?
A: For tubes, it can handle lengths up to 6 meters. For sheets, standard sizes like 4'x8', 4'x10', and 5'x10' are supported, with custom chambers available for longer items.
Q: Is the PVD coating process complicated to operate?
A: No. With our PLC touch screen control and automated systems, the machine is designed for easy operation by a single operator. We also provide a turnkey solution including training.
Q: How many colors can the system produce?
A: The equipment can produce a wide range of decorative coatings including gold, silver, rose gold, black, coffee, rainbow, blue, and purple.
Q: What is the expected lifespan of the equipment?
A: Our machines are built to last with a minimum guaranteed working life of 25 years and come with a 1-year component warranty.
Q: Is PVD coating environmentally friendly?
A: Yes, PVD (Physical Vapor Deposition) is a clean, eco-friendly process that does not produce the hazardous waste associated with traditional chemical plating.
