This ground mounting bracket is strictly designed according to maximum wind speed, snow load, and solar panel specifications. While ensuring sufficient strength, installation efficiency and labor costs are optimized. The service life of the bracket is exceptionally long due to high-quality material control. Support foundations include ground screws, piling columns, and cement piers.

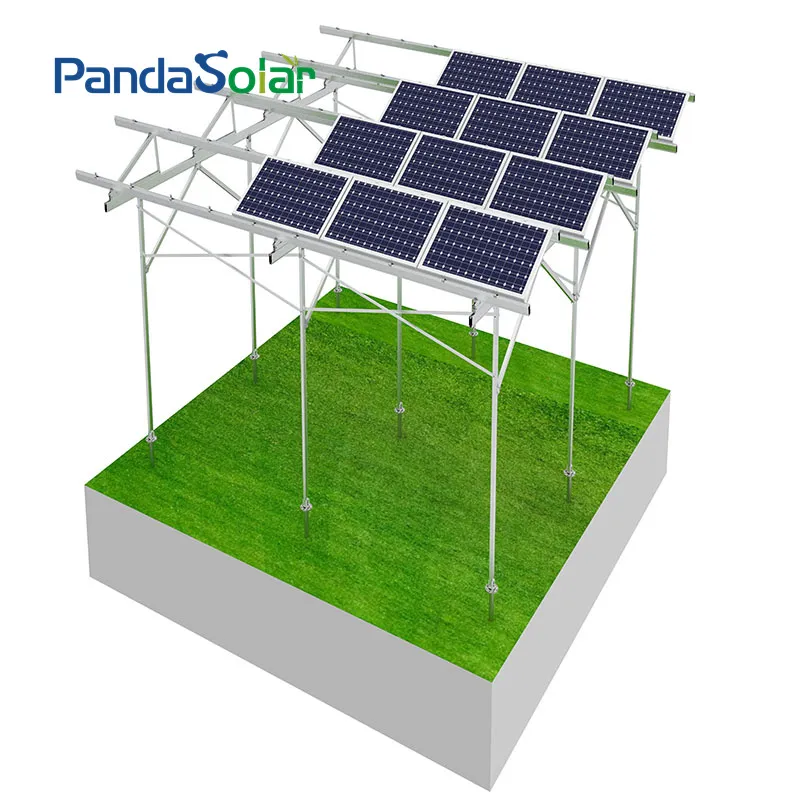

GM4 double column supports ground bolt or piling columns, with ground screw posts allowing for precise height adjustments. The piling column offers higher strength and requires high installation accuracy.

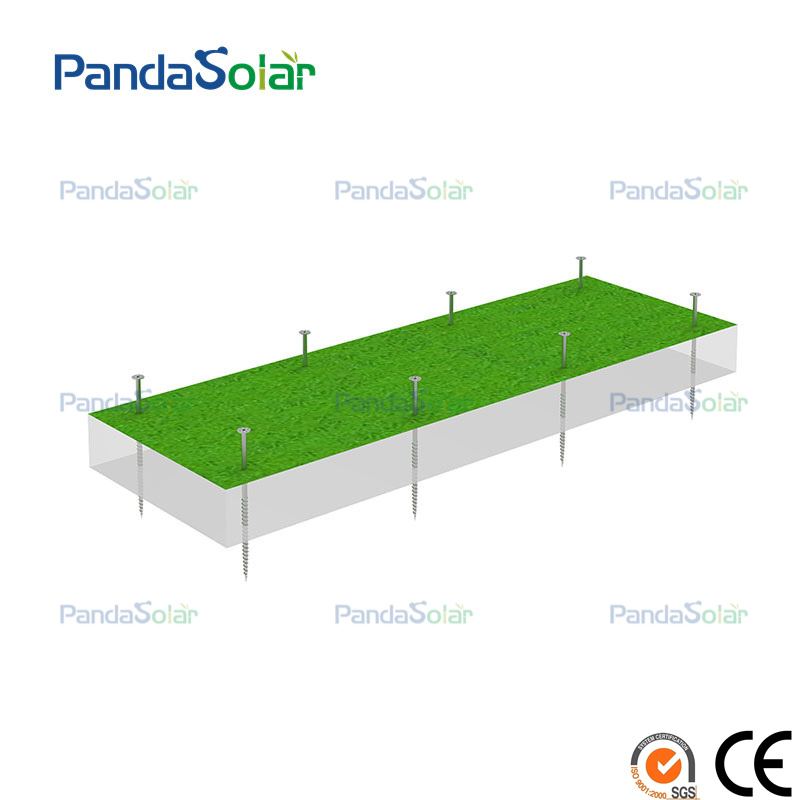

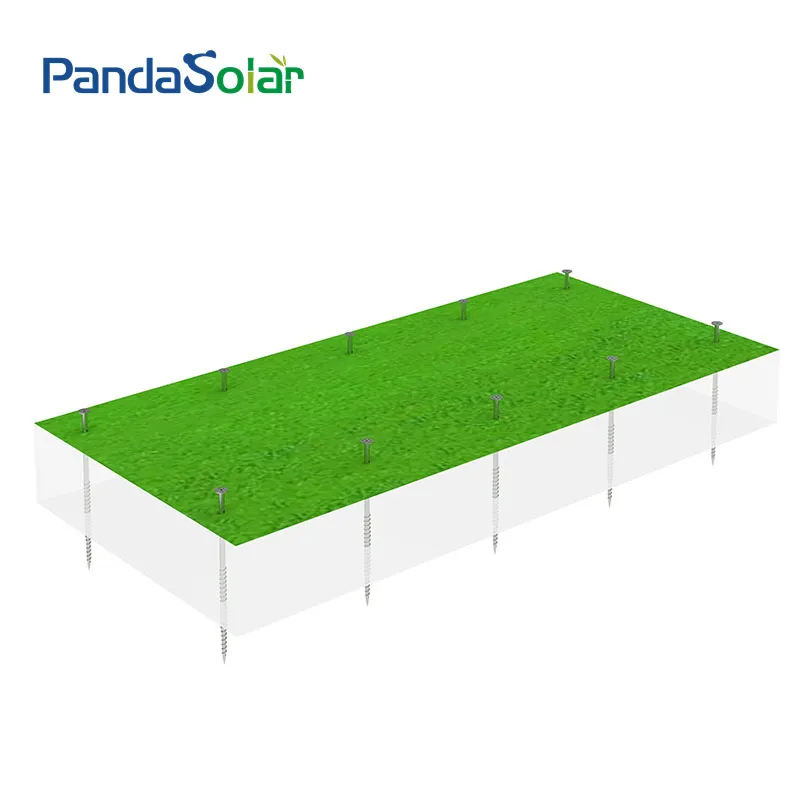

The first step is anchoring the support structure. Screws are drilled into the soil using specialized equipment at depths sufficient to hold the entire system's weight based on soil type.

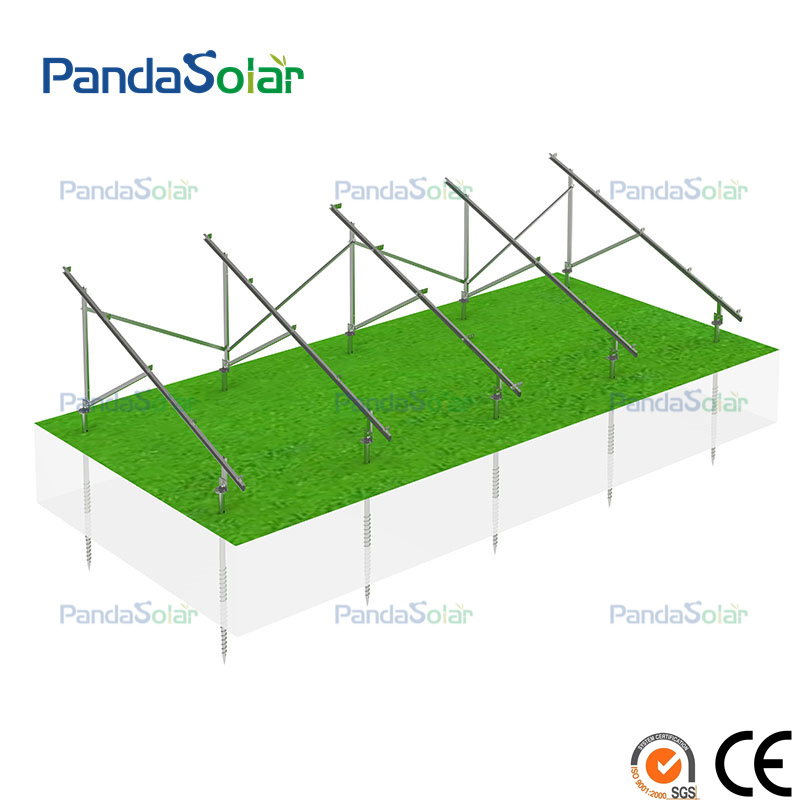

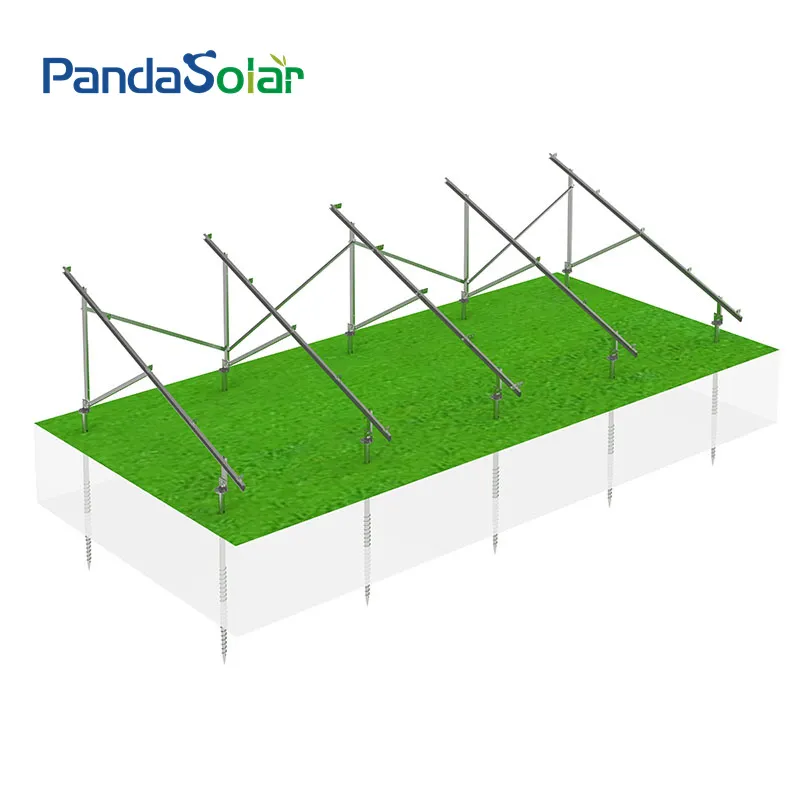

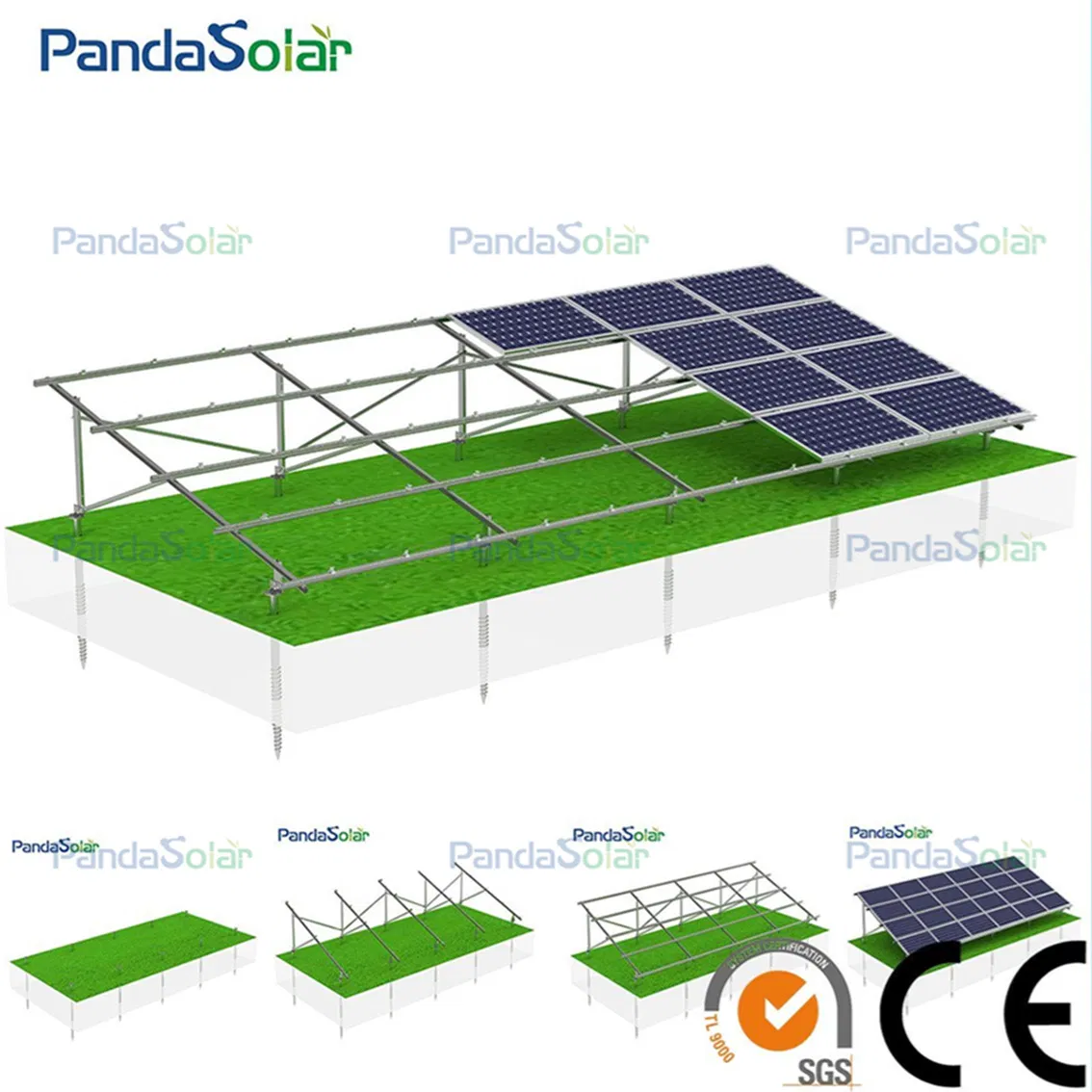

Once the foundation is set, install the beams. Connect the diagonal support pole to the top of the main pole using high-strength bolts and nuts.

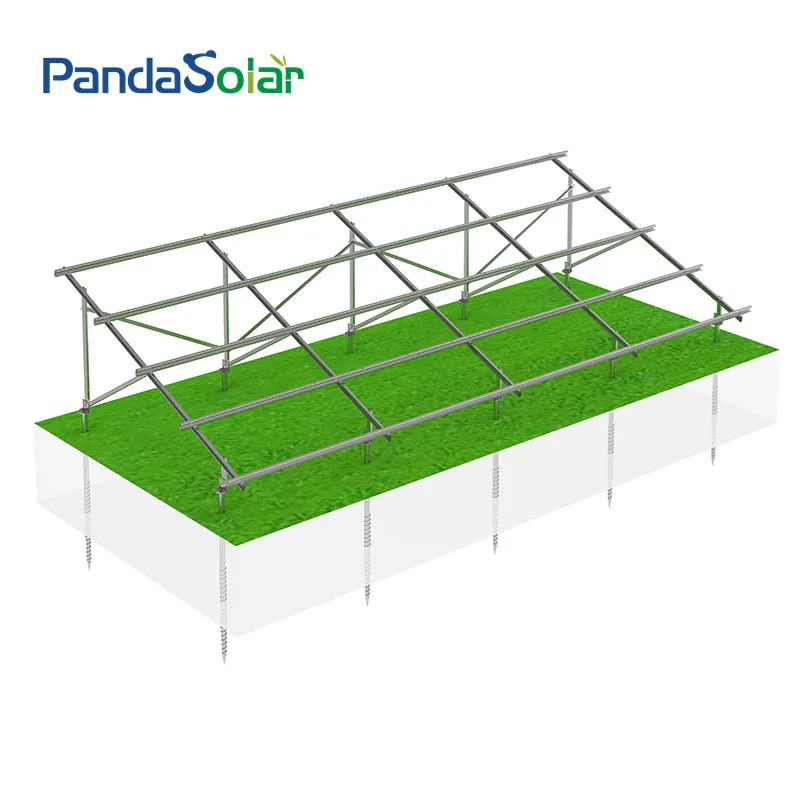

Attach the rails that support the solar panels. Rails are secured to the beams using brackets and bolts. Ensure all rails are level before proceeding.

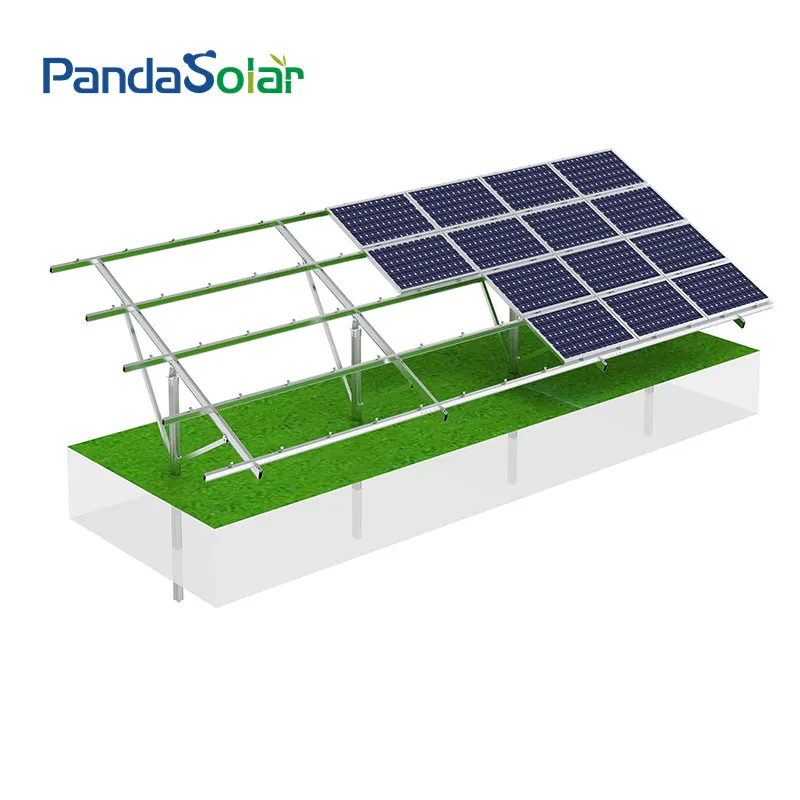

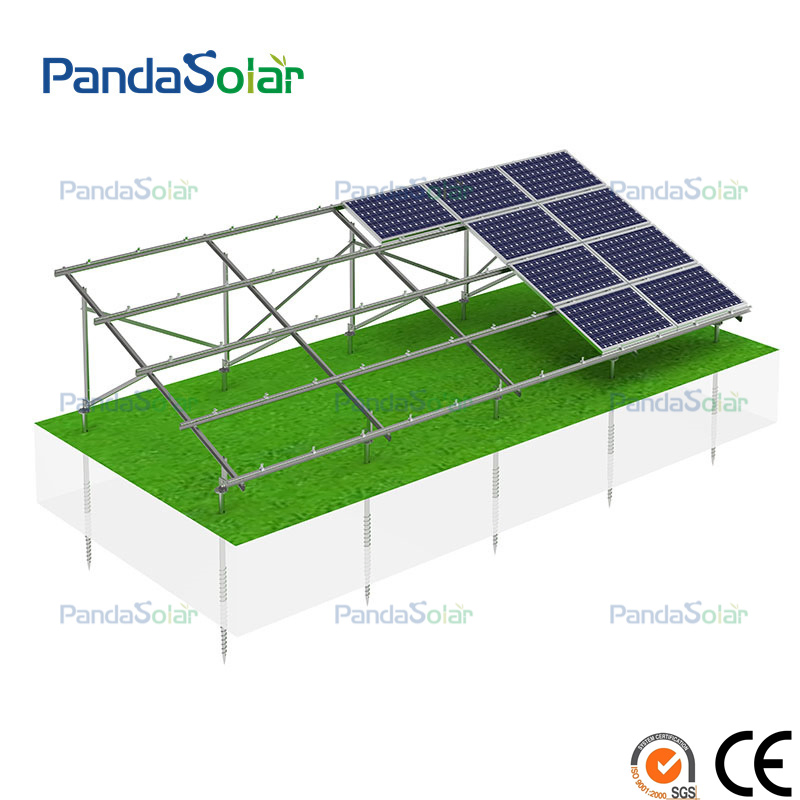

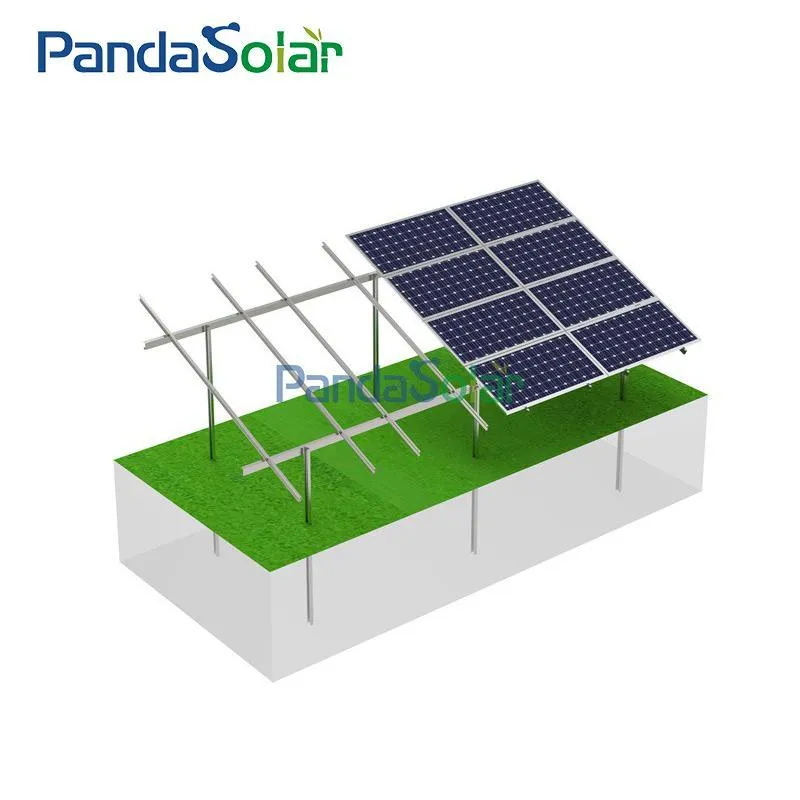

Finally, attach the solar panels to the rails using mounting hardware, ensuring each panel is securely fastened for long-term stability.
| Material | Structure: Mg-Al-Zn & AL-6005-T5; Components: SUS304 & AI6005-T5 |
|---|---|
| Application | Commercial and Residential ground installations |
| Tilt Angle | 0-60° |
| Wind Speed | 0-60 m/s |
| Snow Load | 0-150cm |
| Ground Clearance | 0-1m |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 Years |

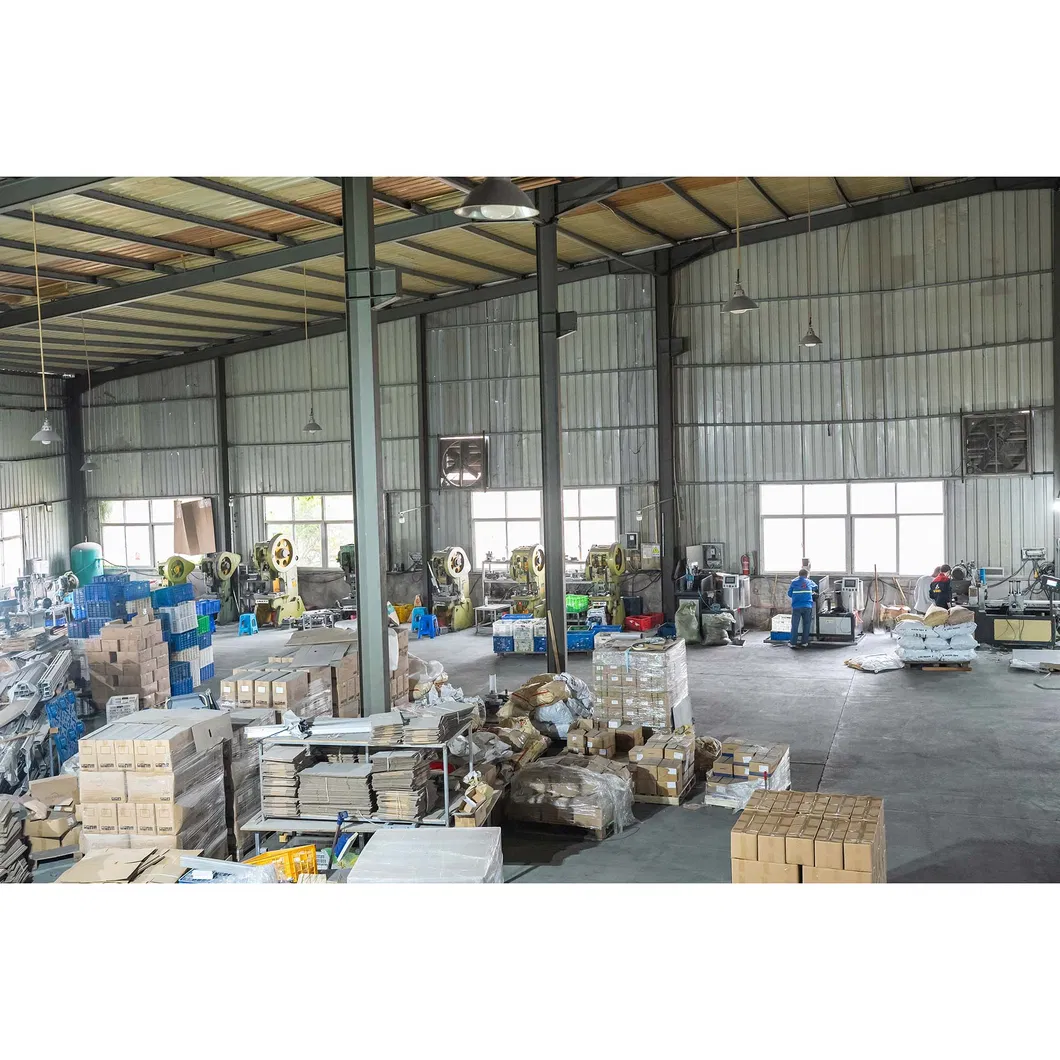

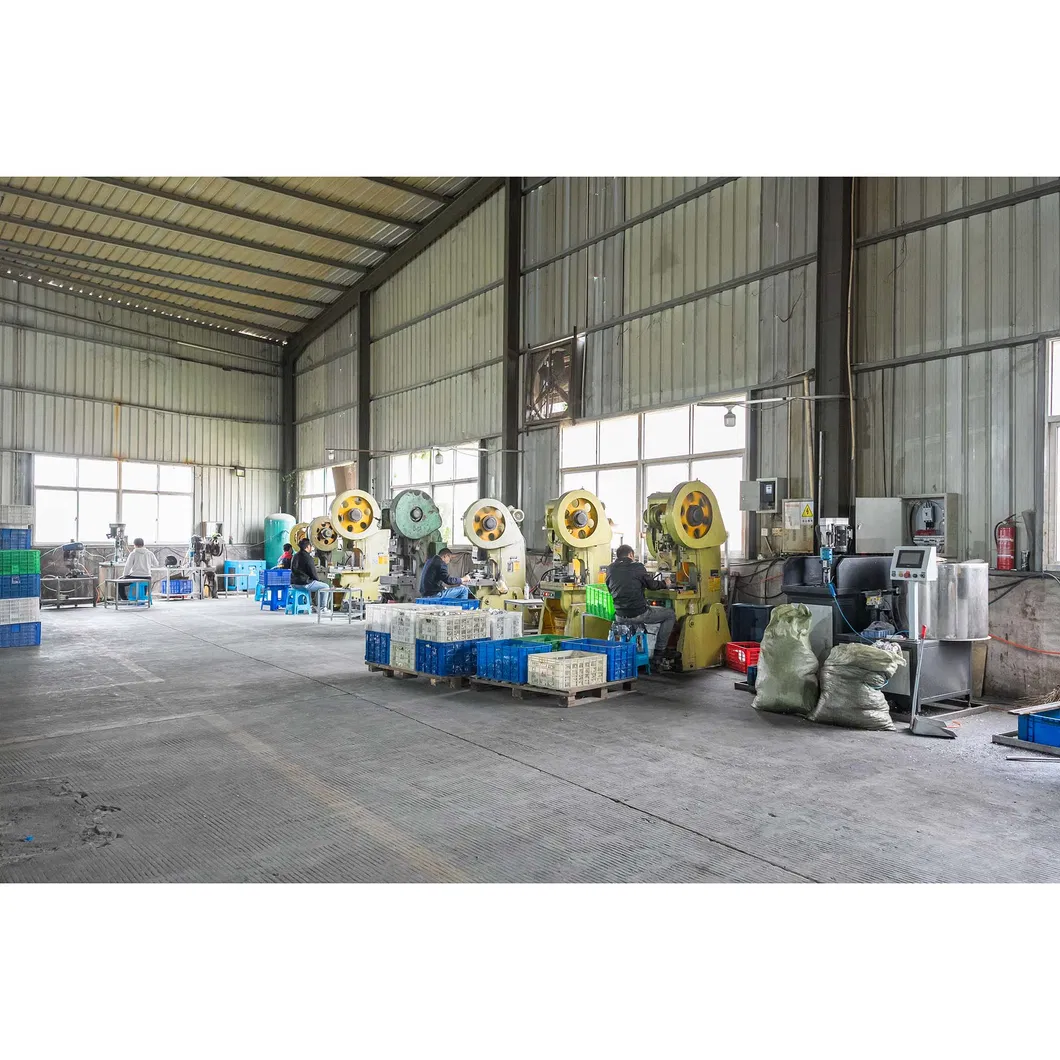

Our aluminum processing workshop independently completes cutting, drilling, stamping, and forging with high precision. For steel and Magnesium Aluminum Zinc materials, we operate 6 production lines with a monthly productivity of 40-50MW.
