📊Basic Information
TypeCoating Production Line
CoatingVacuum Coating
SubstrateSteel
CertificationCE
Key Selling PointsLong Service Life
TechnologyMagnetron Sputtering + Arc Deposition
Raw MaterialChrome, Titanium, Silver, etc
Coating FilmTiN, TiC, CrN, ZrN, TiCN

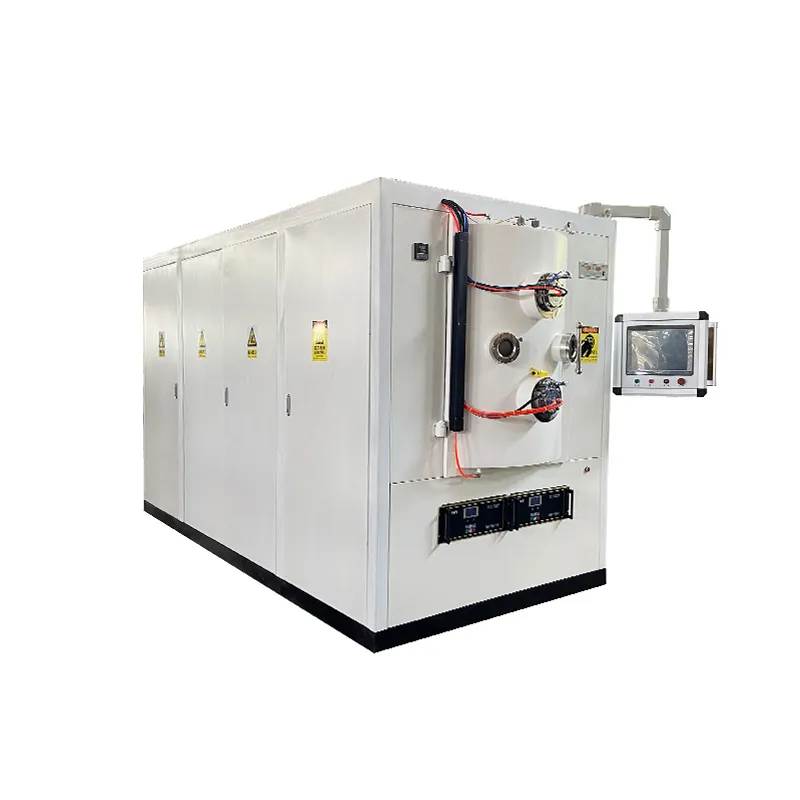

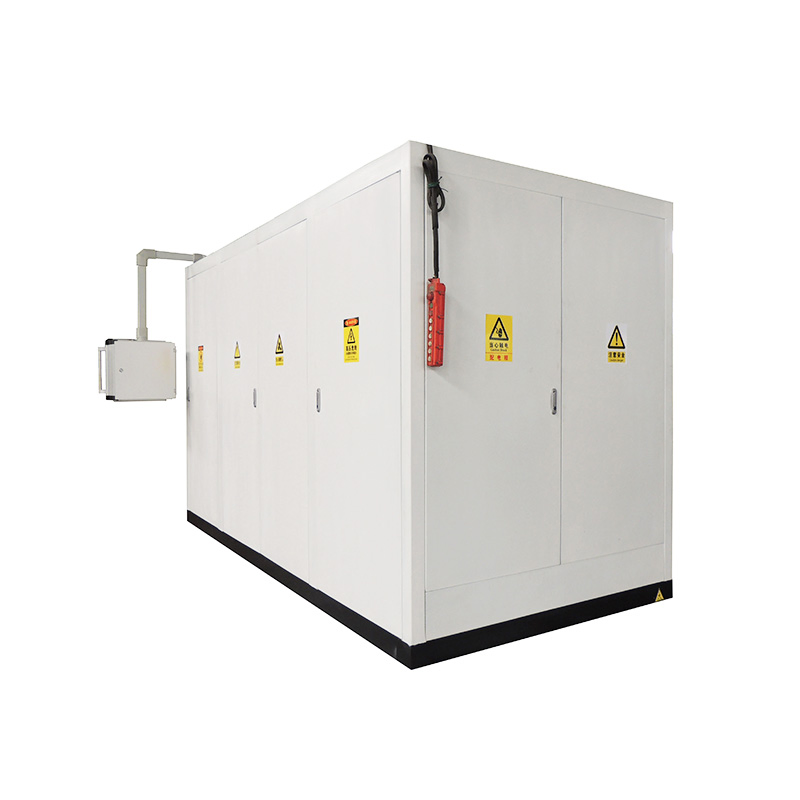

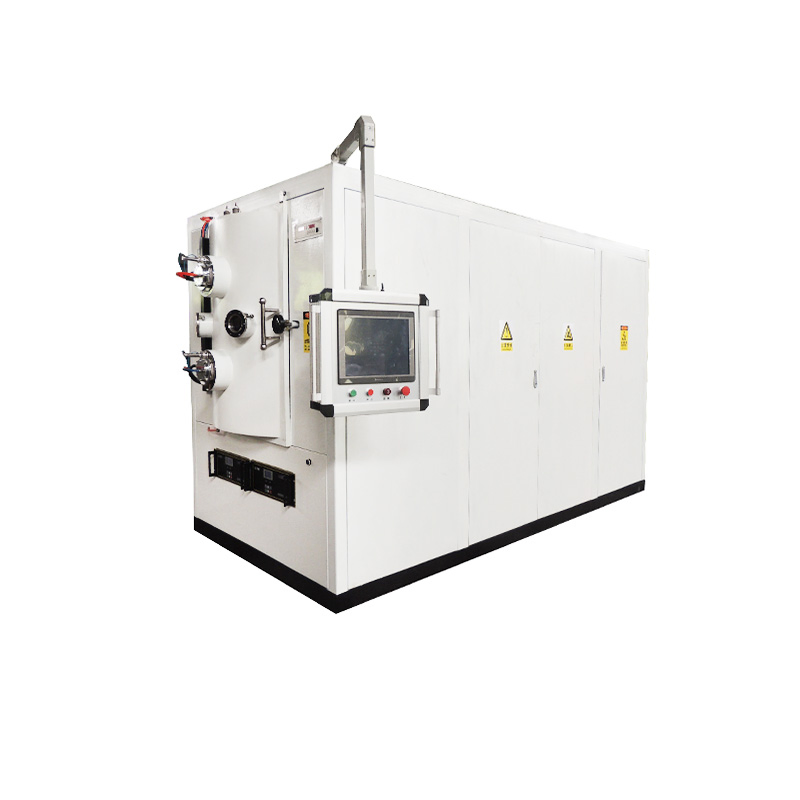

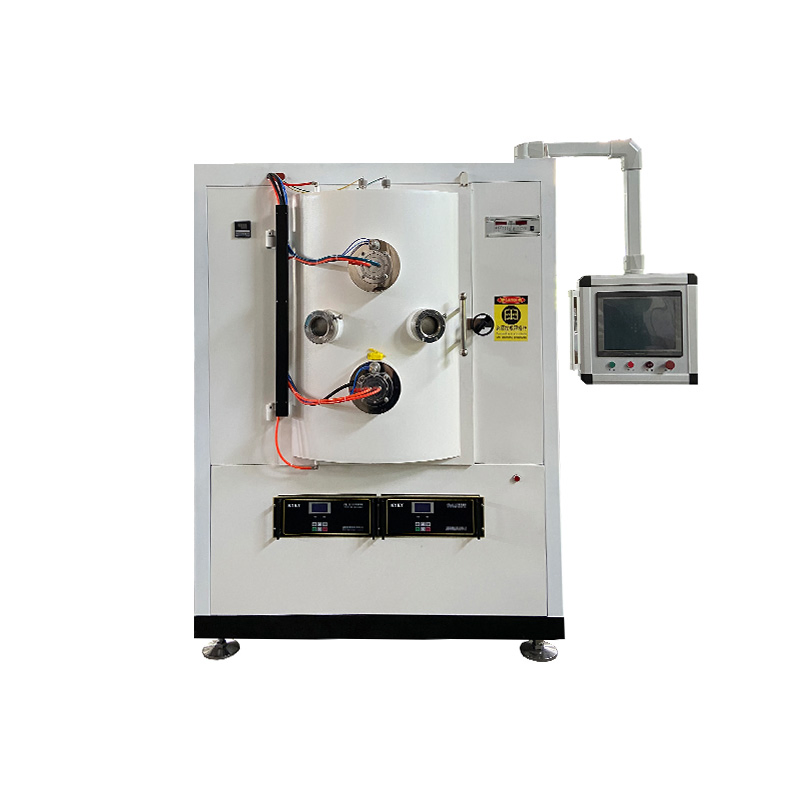

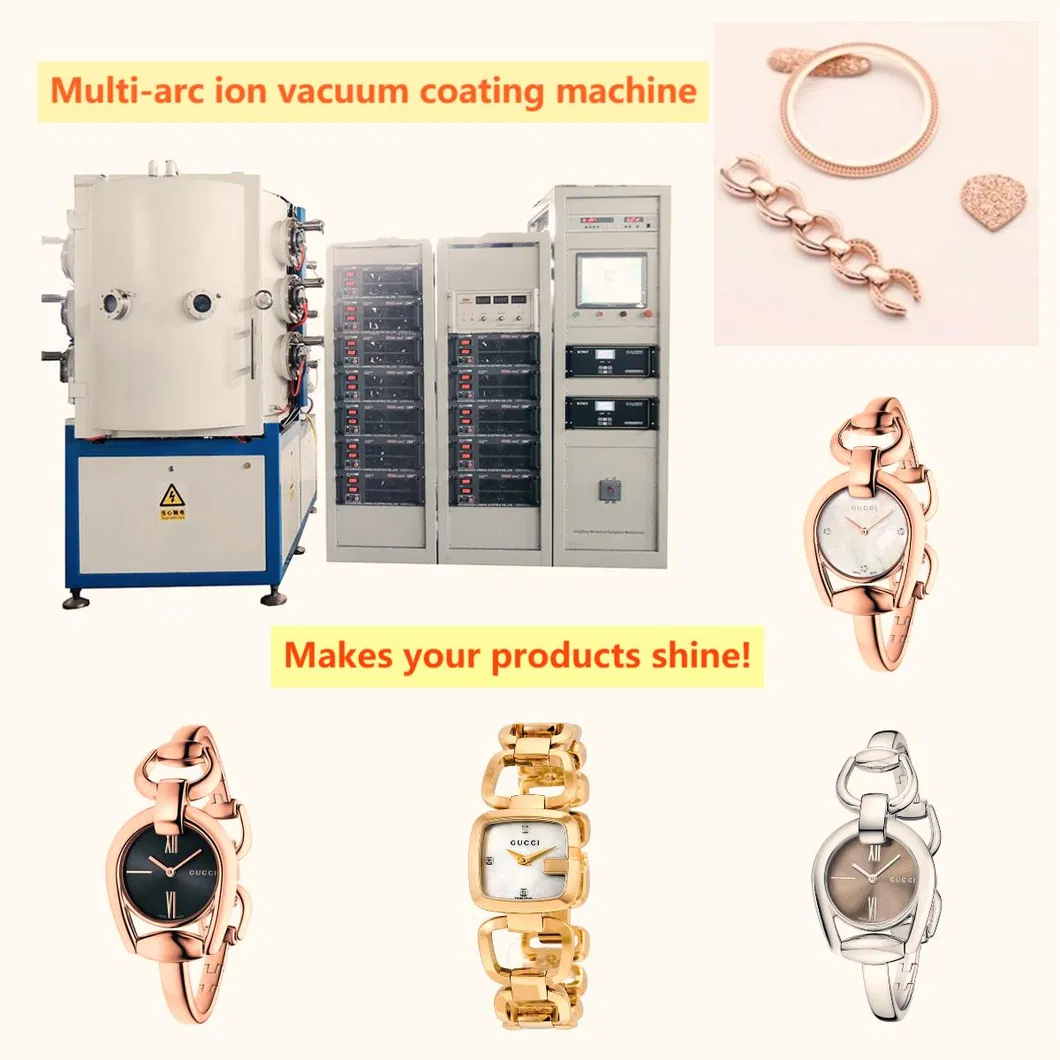

🚀Titanium Nitride Coating Equipment
This high-tech environmental friendly PVD Multi-Arc Ion Plating System is designed for metal, glass, and surface coating. It significantly improves workpiece hardness, wear resistance, and corrosion resistance. The resulting film enhances both the aesthetic appeal and durability of the treated products.

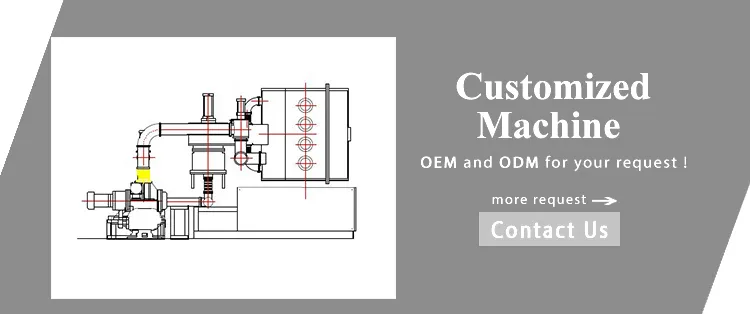

Main Features
- Chamber size: φ 600mm-φ1800mm (Customizable)
- 3-point vacuum level and 2-point temperature measuring
- High power ion source for uniform deposition distribution
- Multiple arc sources for various metal and alloy layers
- Auto-deposition control system for fully automated process
- Optional center-driving or planetary substrate dome
- Advanced pumping system with diffusion or turbo molecular pumps
⚙️Technical Specifications
| Parameter |
Details |
| Model | ARC series |
| Vacuum Chamber | SUS304, φ600mm-1200×600-1200mm (H) |
| Substrate Dome Rotation | 10 rpm to 50 rpm (Variable) |
| Arc Evaporation Source | 2 to 16 sets |
| Ultimate Pressure | 5.0×10⁻⁴ Pa or lower |
| Pump Down Rate | 25 minutes (Atm. to 5.0×10⁻³ Pa) |
| Substrate Heater | Up to 550°C |
| Power Requirements | 3-phase, 380V, 50/60Hz, 100-180kVA |

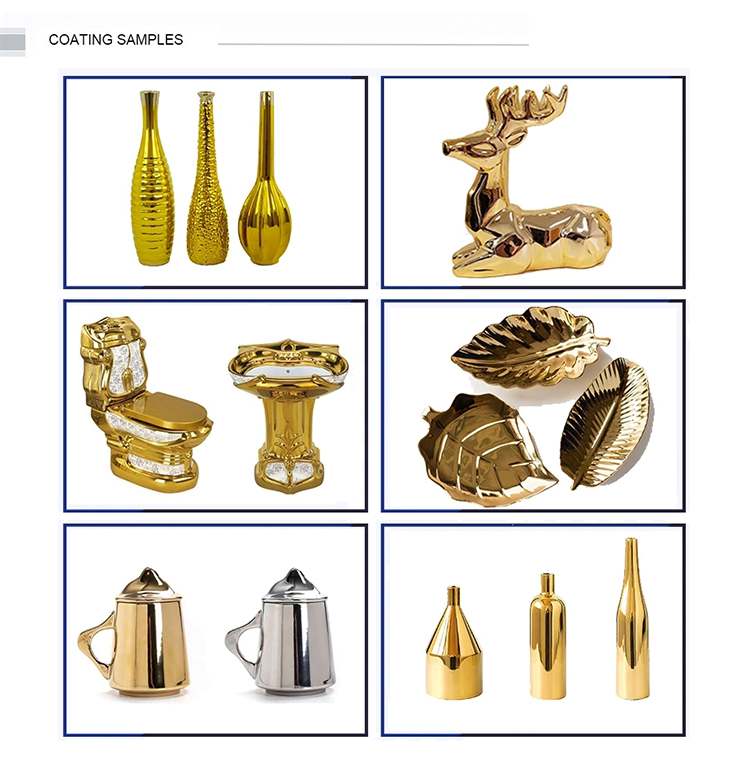

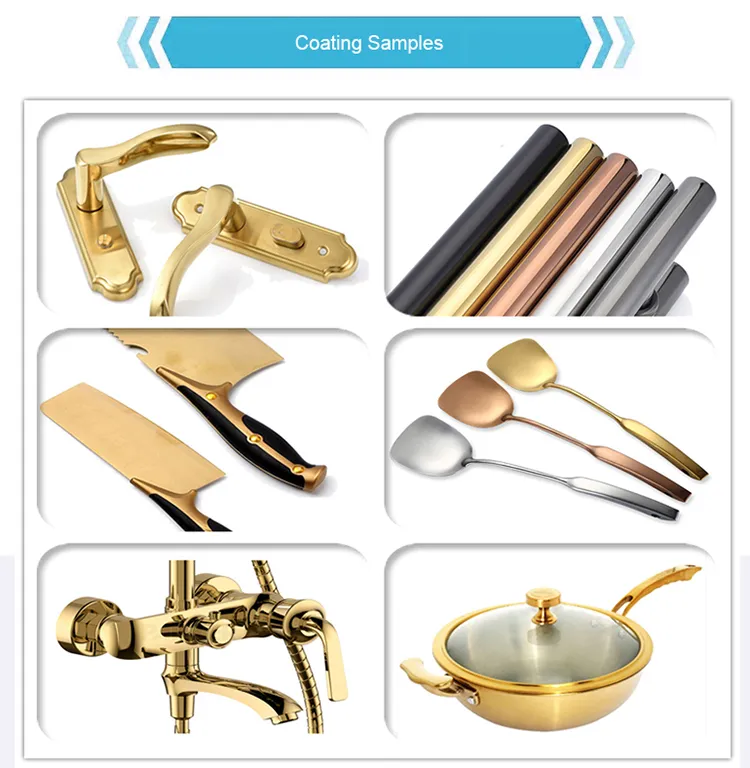

🛠️Industrial Applications
This equipment is widely used across various industries for functional and decorative coatings:
- Watch industry (straps, cases, dials)
- Hardware (sanitary ware, door knobs, locks)
- Precision molds & forming tools
- Cutting tools (drills, carbide cutters)
- Automotive (pistons, alloy wheels)
- Architecture (SS plates, railings)
Frequently Asked Questions
What materials can this equipment coat?
The system is designed for a wide range of substrates including stainless steel, tool steel, glass, ceramics, and various metal alloys.
What are the primary benefits of Titanium Nitride (TiN) coating?
TiN coating provides high surface hardness, a low friction coefficient, excellent wear resistance, and a distinctive attractive gold finish.
Can the chamber size be customized for large components?
Yes, the chamber dimensions can be customized from φ600mm up to φ1800mm or more to accommodate specific workpiece sizes and production requirements.
Is the PVD multi-arc ion plating process environmentally friendly?
Yes, PVD is a dry process that does not produce hazardous waste or chemicals, making it an eco-friendly alternative to traditional electroplating.
What is the typical cycle time for a coating process?
The vacuum pump down rate is approximately 25 minutes to reach working pressure, with total cycle time depending on the specific film thickness and material being deposited.
What control systems are used for operation?
The equipment features an auto-deposition control system for fully automated, repeatable, and precise coating processes.
