Product Description

📌 Basic Information
Model NO.
NXGGK01
Sterilization
Without Ethylene Oxide
Guarantee Period
Two Years
Group
Adult
Certification
ISO, CE
Usage
Fracture Fixation
Using Site
Tibia
Origin
China

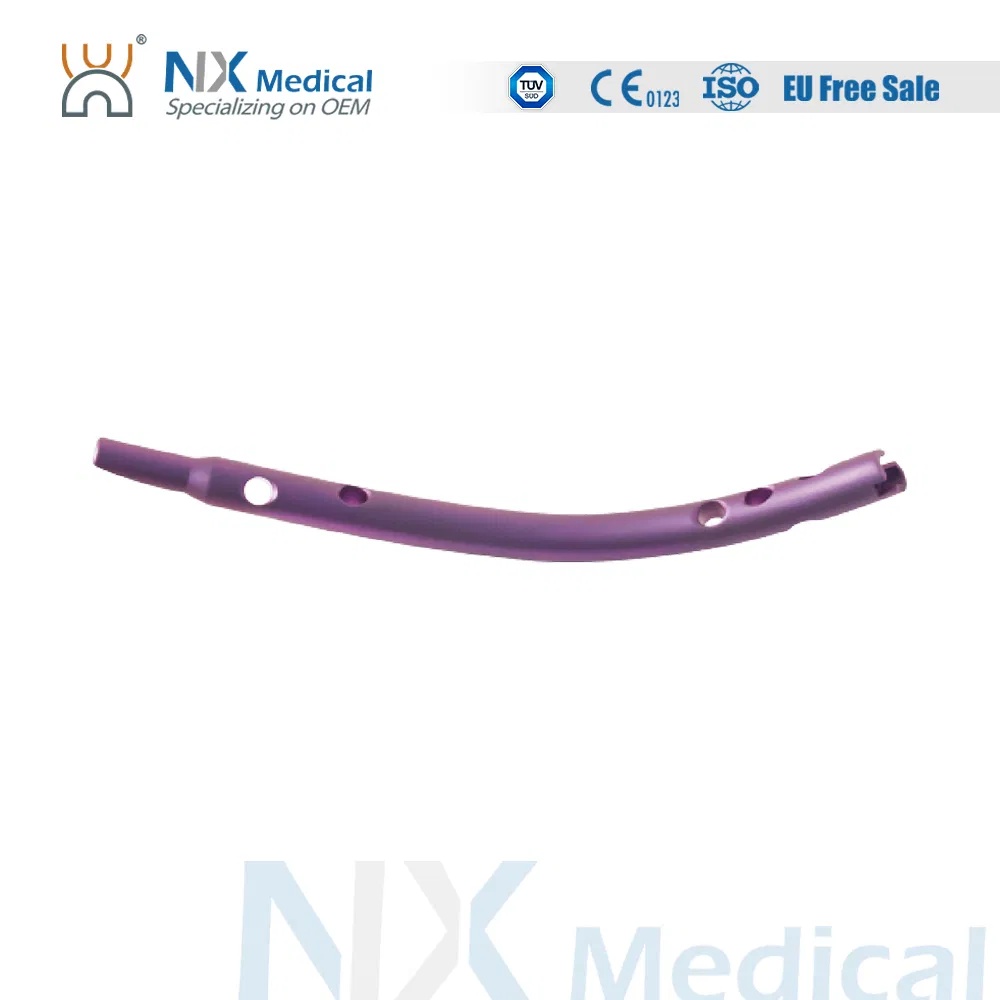

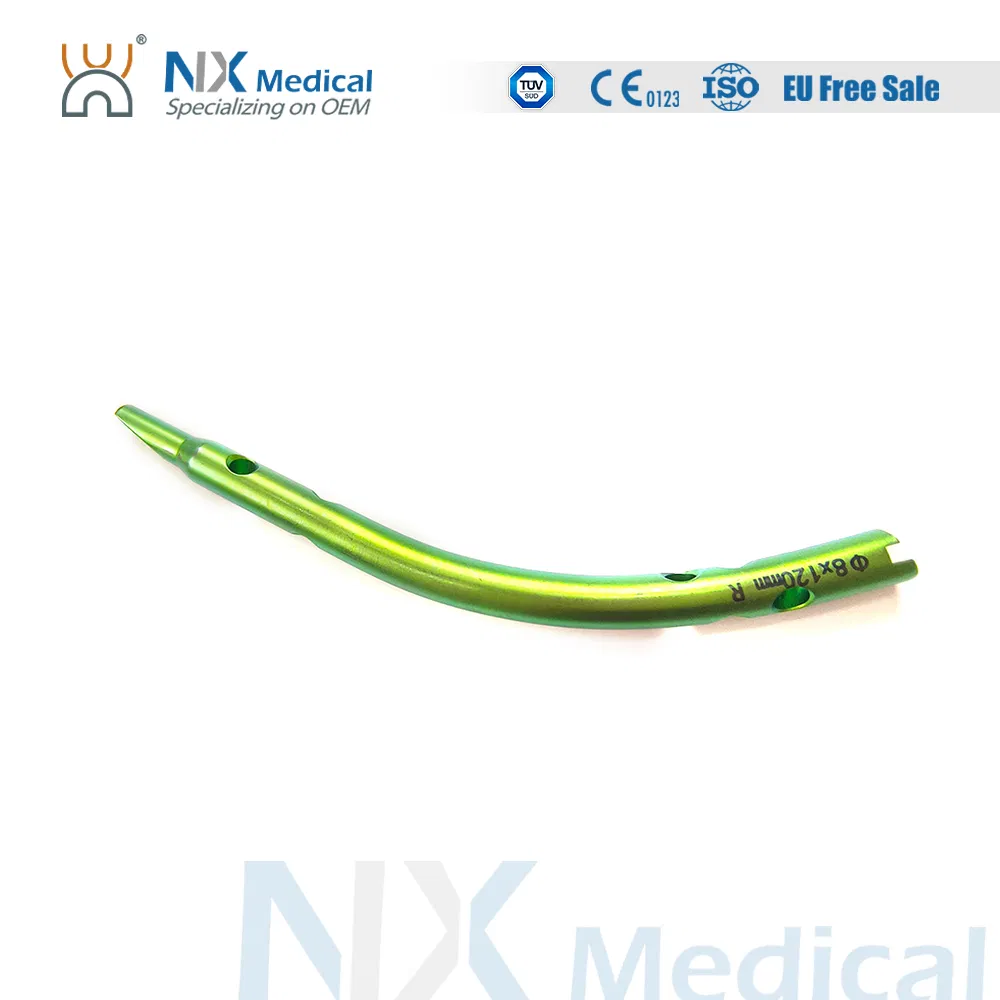

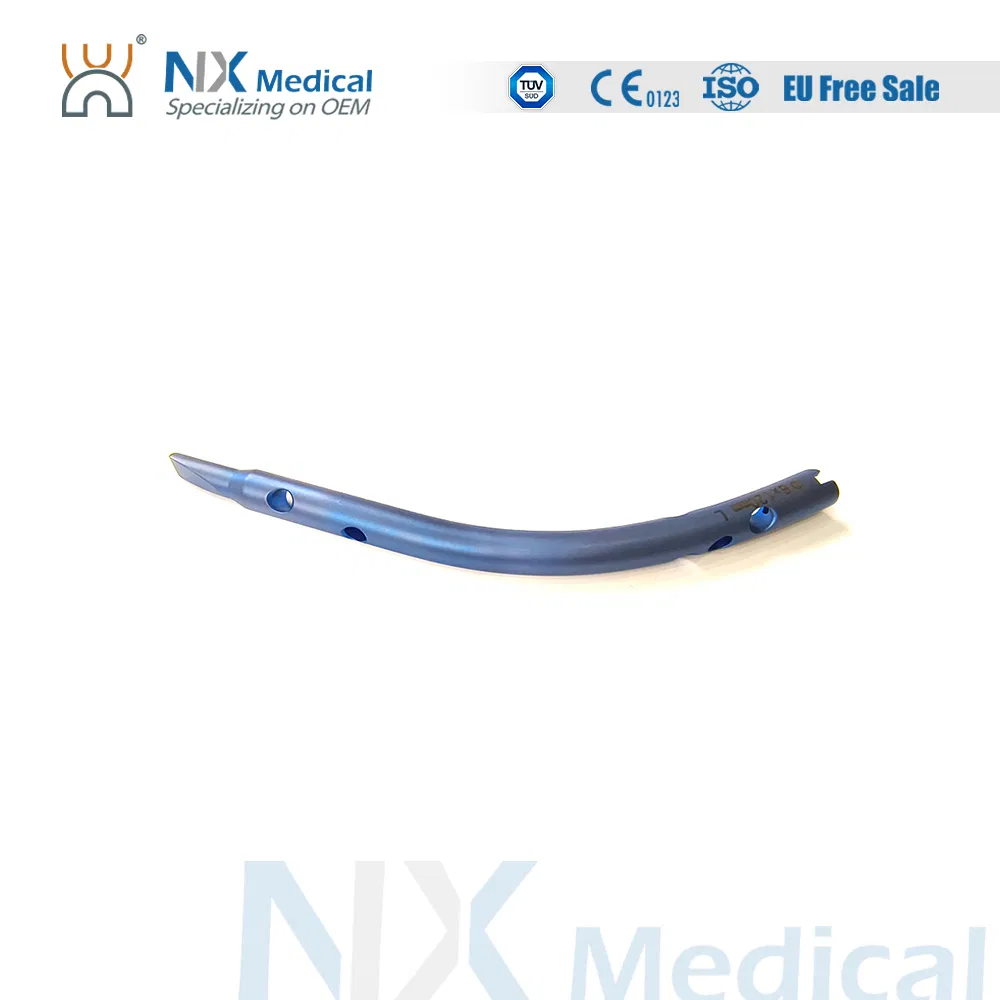

Orthopedic Trauma Implant Titanium Retrograde Tibial Intramedullary Nail
Titanium Retrograde Tibial Intramedullary Nail System
⚙️ Product Description

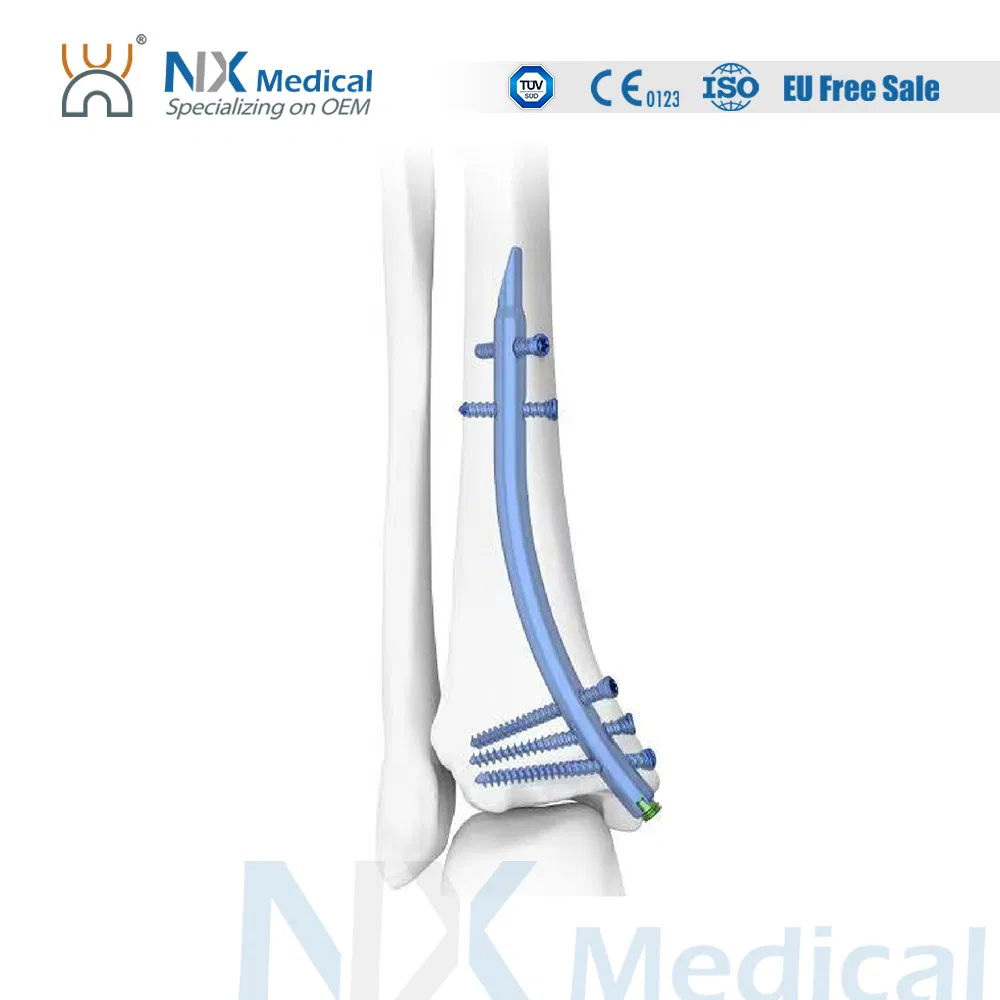

Retrograde Tibial Nail System

Our Retrograde Tibial Nail System is designed for advanced orthopedic trauma care, providing stability and precision for tibial fractures.

Key Features and Benefits

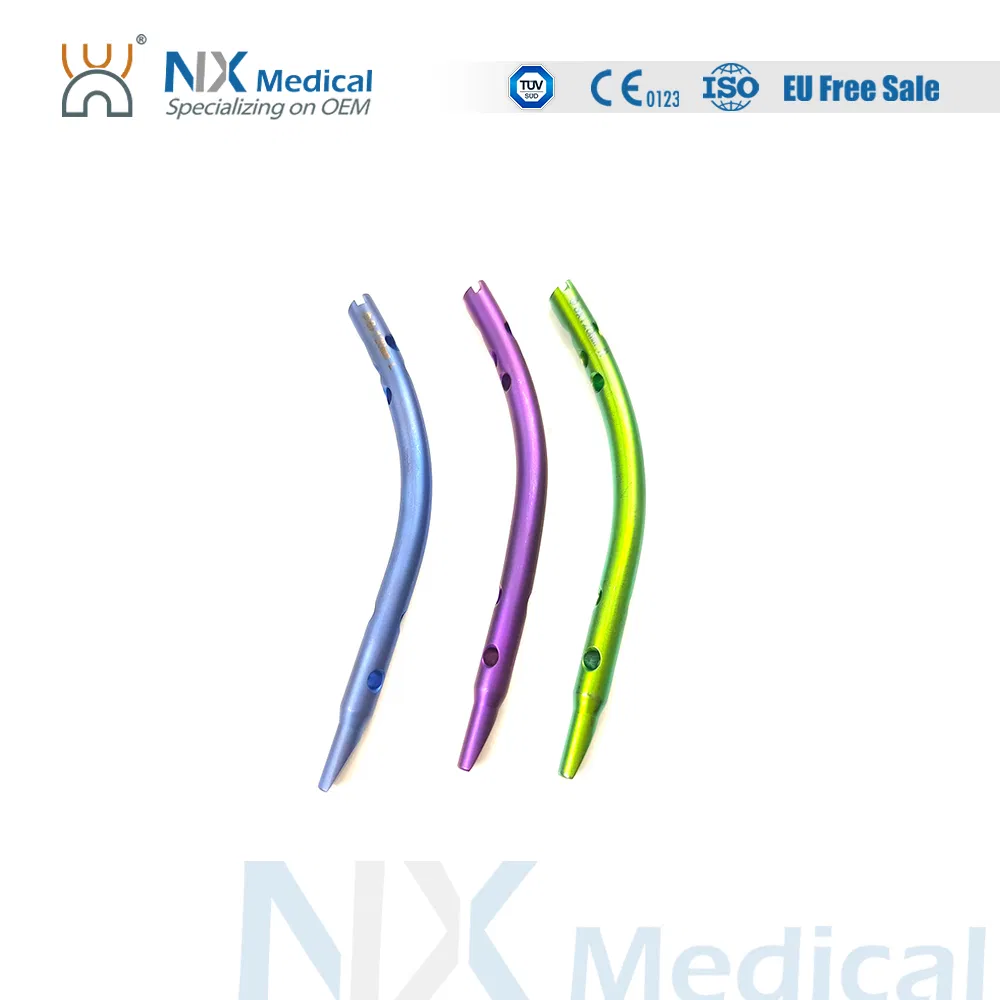

  • Colour coding to easily differentiate nail sizes
  • Proximal oblique cutting design reduces irritation to soft tissues of medial malleolus
  • Two proximal interlocking screws avoid fracture rotation and displacement
  • Distal flat cutting design avoids insertion difficulties
  • Three distal divergent locking screws provide effective support and fixation
  • Advanced and user-friendly instruments facilitate nail insertion
  • Carbon fiber jigs facilitate first distal screw insertion position preparation

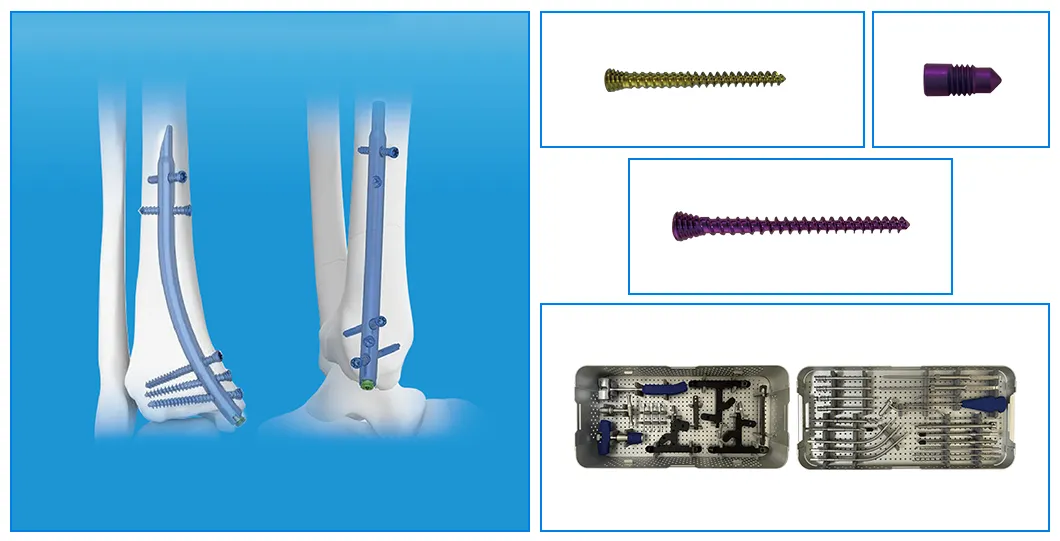

Nail System Details

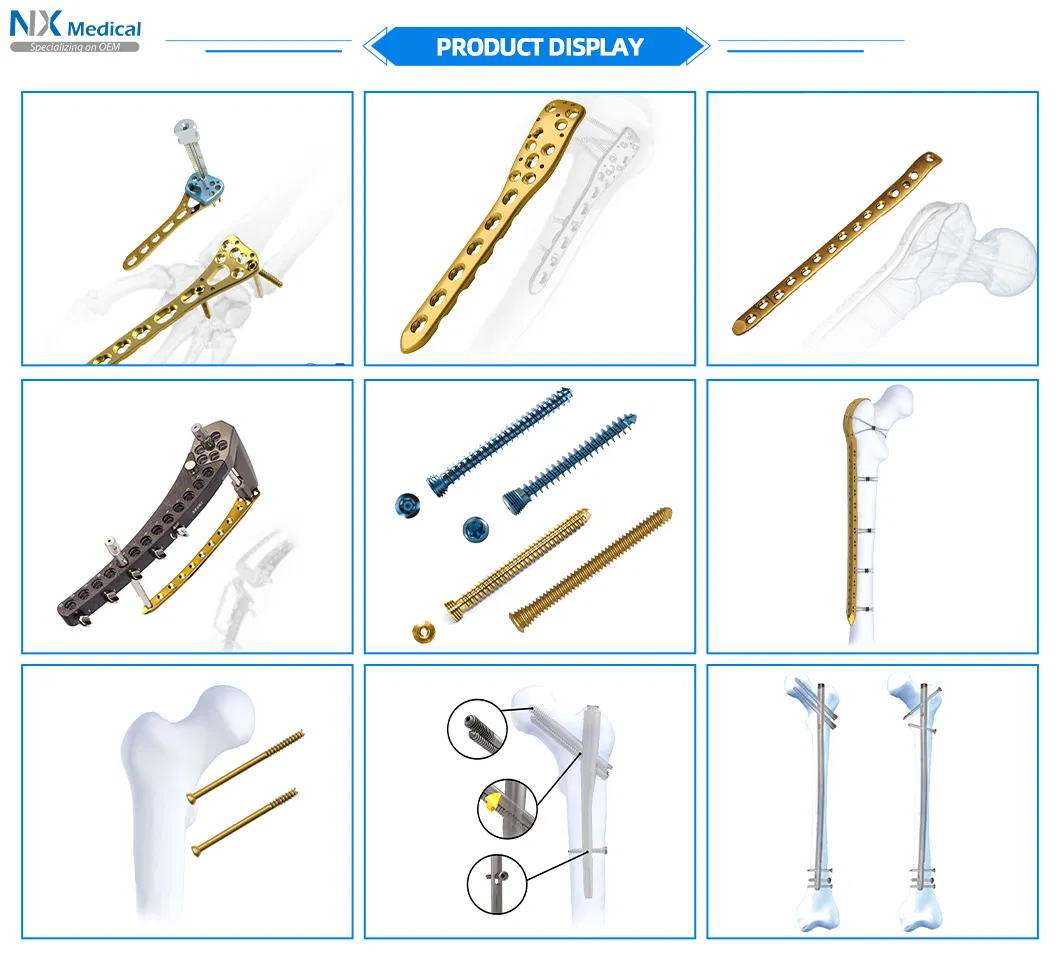

Orthopedic Implant Components
📊 Specifications
Product Size (mm) Material
Retrograde Tibial Nail7 x 110Titanium (TA)
Retrograde Tibial Nail8 x 120Titanium (TA)
Retrograde Tibial Nail8 x 140Titanium (TA)
φ3.5mm Interlocking Cancellous Screw 30 / 32 / 34 / 36 / 38 / 40 / 42 / 44 / 46 / 48 / 50 / 52 Titanium (TA)
φ3.5mm Interlocking Cortical Screw 18 / 20 / 22 / 24 / 26 / 28 Titanium (TA)
φ4.0mm Interlocking Cortical Screw 24 / 26 / 28 / 30 / 32 / 34 Titanium (TA)
End Cap5 / StandardTitanium (TA)
🏢 Profile

Our factory is one of the leading Orthopedic product manufacturers located in East China. We provide a comprehensive range of cost-effective surgical and reliable therapeutic solutions to orthopedic surgeons and patients worldwide.

We offer superior trauma implants, spinal implants, and surgical instruments. Our major categories include locking plates, intramedullary nails, cannulated headless screws, and cable systems. We are committed to global industry growth through continuous investment in R&D.

All products are manufactured under strict quality systems, complying with ISO13485, and certified by TUV CE0123. Our goal is to provide the safest and most advanced implants that ensure rapid recovery and a pain-free life after surgery.

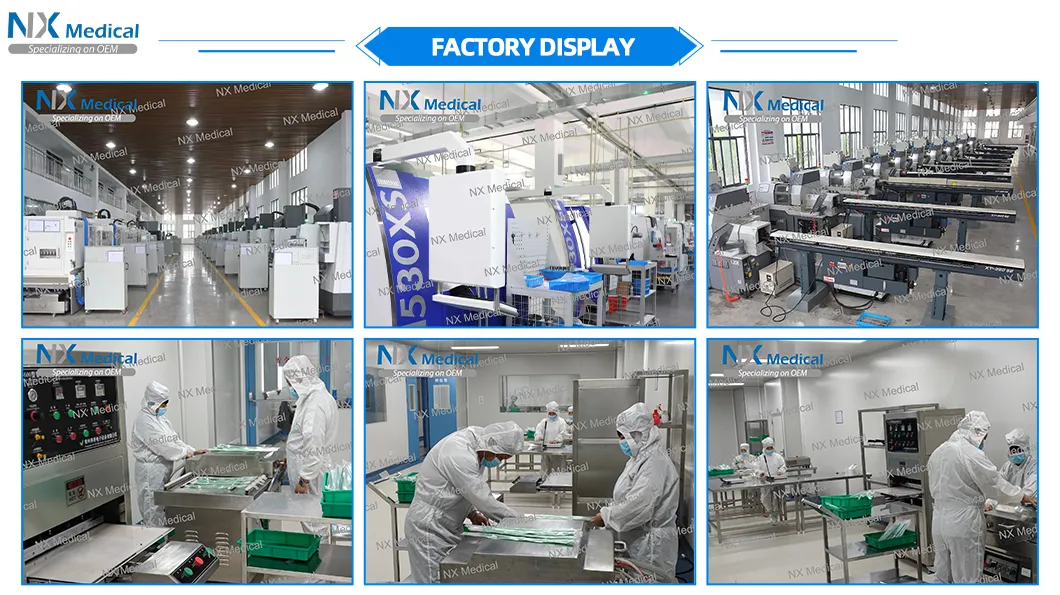

Manufacturing Facility

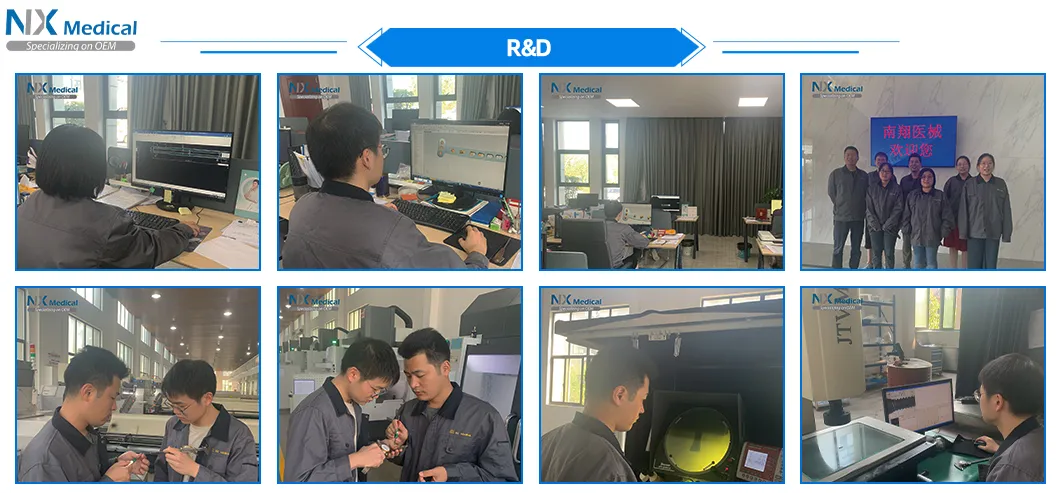

R&D Center

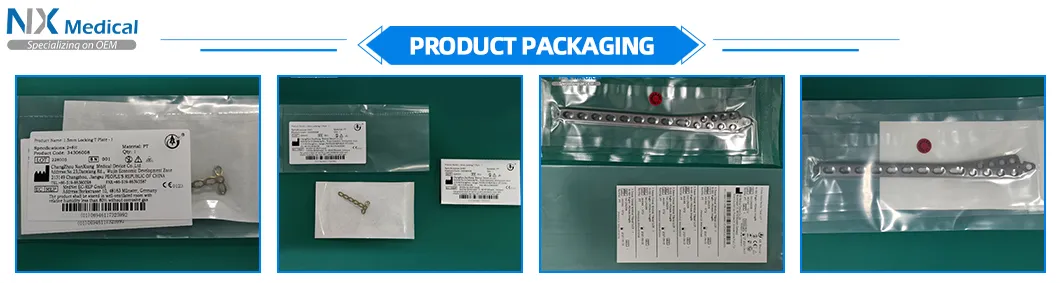

Quality Control
📜 Certifications
CE and ISO Certifications
❓ Frequently Asked Questions
Can I have a sample order?
Yes, we welcome sample orders to test and check the quality of our orthopedic implants. Mixed samples are acceptable.
Do you offer customized products?
Yes, we have a complete design and drawing department along with CNC machinery to provide high-precision customized services.
What is the typical lead time for samples?
For existing items, samples can be prepared within 3 days. For OEM products, the process typically takes approximately 2 weeks.
How do you ensure product quality?
We conduct strict sampling inspections on all products before shipment and ensure that all packaging remains intact and sterile.
Can you print our logo on the products?
Yes, we can brand the products and packaging with your logo, provided the minimum order quantity (MOQ) requirements are met.
What materials are used in the tibial nails?
Our nails and screws are primarily manufactured from high-grade Titanium (TA) to ensure biocompatibility and strength.
